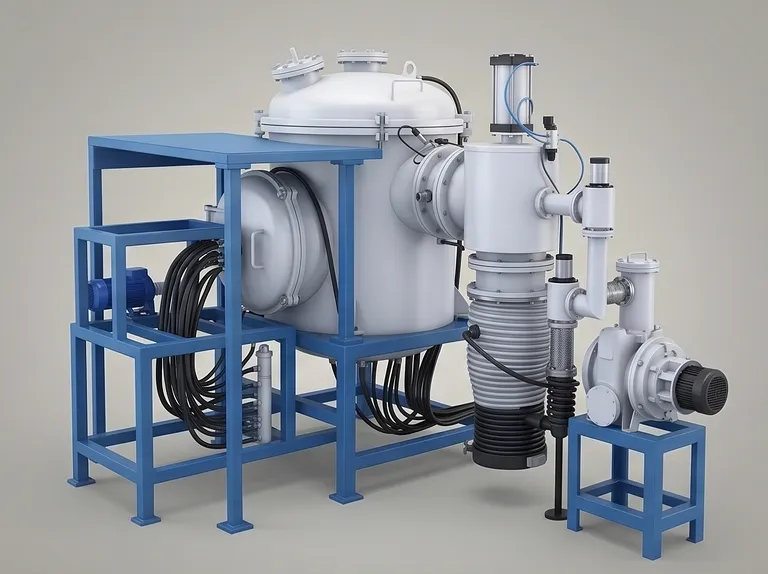

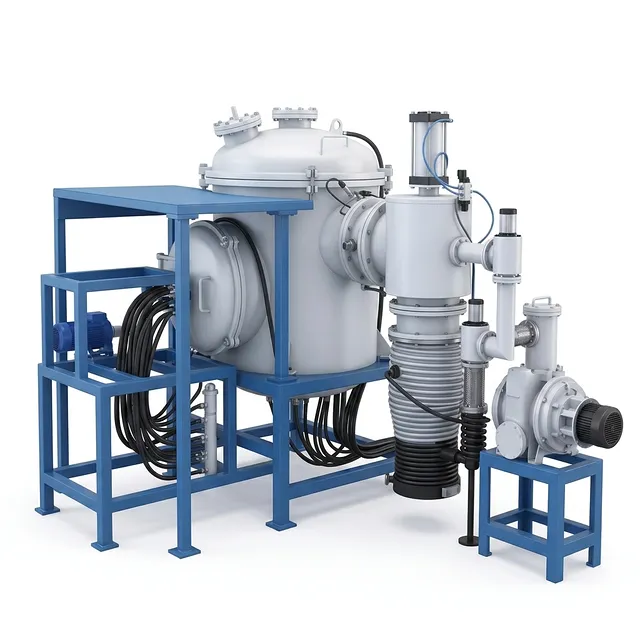

50KG Vacuum Induction Melting Furnace for Alloy and Metal Casting

Product Overview

This vacuum induction melting furnace is engineered for high-capacity melting and casting of magnesium-aluminum alloys along with a wide range of other metals under vacuum or protective atmosphere conditions. With a substantial 50 kg melting capacity and a maximum operating temperature of 1650°C, this system provides the thermal performance and precise control necessary for demanding metallurgical processes. The integrated IGBT power supply ensures energy-efficient operation, while the robust induction coil and vacuum chamber deliver consistent melt quality, making it an ideal solution for both research and production environments.

Designed for material science laboratories, specialty alloy development, and industrial R&D, the furnace supports both vacuum melting and inert gas casting to minimize oxidation and contamination. Typical applications include the production of high-purity alloy ingots, refining of reactive metals such as titanium and zirconium, and the development of advanced lightweight materials for aerospace, automotive, and defense sectors. Its ability to handle reactive metals and complex alloy systems under tightly controlled atmospheres makes it indispensable for pushing the boundaries of material performance.

Built on decades of engineering expertise, this equipment incorporates a durable induction coil modeled after leading international designs, a state-of-the-art IGBT power supply, and a rigorously helium leak-tested vacuum chamber. Every component—from the pressure-rated cooling hoses to the high-capacity filter system—is selected for long-term reliability, ensuring consistent batch-to-batch performance even under continuous high-temperature operation. The result is a melting furnace that delivers not only technical excellence but also confidence in every melt.

Key Features

• Superior Induction Coil Design: The coil is modeled after advanced international designs, ensuring optimal power coupling, easy operation, and exceptional durability. It resists deformation under thermal cycling, extends service life significantly, and promotes uniform heating for homogeneous melt quality.
• Energy-Efficient IGBT Power Supply: The state-of-the-art IGBT-based power system reduces overall electricity consumption compared to conventional designs, lowering operational costs while delivering stable, high-frequency power for rapid melting and precise temperature control.
• Auto-Adaptive Frequency Control: The output frequency automatically adjusts between 1000 and 4000 Hz to match the load characteristics, ensuring maximum energy transfer and efficient heating throughout the melt cycle, even as the charge composition changes.
• Highly Integrated Power Electronics: With a compact, fully integrated design, the IGBT module minimizes component count and potential failure points, enhancing system reliability and simplifying maintenance. This modular approach also allows for straightforward upgrades and servicing.
• Advanced Pulse Protection: A sophisticated pulse-by-pulse protection circuit reacts instantaneously to overcurrent or fault conditions, safeguarding the power electronics and extending equipment life. This proactive protection prevents arc damage and ensures uninterrupted operation.
• Zero-Potential Startup: The power supply employs a soft-start mechanism that eliminates inrush current stress, protecting both the electrical infrastructure and the furnace components. This gradual energization reduces mechanical and thermal shock, contributing to longer system life.
• German-Engineered Control Cabinet: Housed in a standardized Rittal cabinet (German design), the system integrates vacuum pump controls and a clean, professional layout. This ensures long-term durability, ease of use in industrial environments, and compliance with international safety standards.
• High-Capacity Filter System: Built using a design based on Leybold technology, the filter provides strong adsorption of process byproducts, is easy to access for cleaning, and allows quick replacement of filter elements to maintain vacuum quality and protect the vacuum pump.
• Durable Cooling Water Hoses: Unlike typical plastic hoses that degrade at moderate temperatures, this furnace employs pressure-rated woven rubber hoses that withstand up to 130°C. This prevents burst failures, ensures uninterrupted cooling of the coil and chamber, and significantly reduces maintenance intervals.
• Stringent Vacuum Integrity: Each unit undergoes helium mass spectrometer leak detection to verify a vacuum pressure rise rate of ≤4.0 Pa/h, a figure that exceeds the national standard. This guarantees a clean melting environment, minimal contamination, and reproducible results across batches.
• Rapid Melting Capability: Thanks to the combination of efficient power delivery and optimized coil geometry, the furnace achieves fast melt times, improving throughput and energy efficiency in production settings without compromising temperature uniformity.
• User-Friendly Operation: The intuitive control interface and integrated vacuum system controls allow operators to manage melting profiles, vacuum levels, and safety interlocks from a single point, reducing training time and minimizing the risk of operational errors.

Applications

Technical Specifications

Why Choose This Product

• Proven Long-Term Reliability: The combination of a rugged induction coil, IGBT power system with advanced protection, and helium leak-tested vacuum chamber results in a furnace that delivers consistent performance over years of heavy use, minimizing downtime and repair costs. Components like the high-temperature cooling hoses and modular filter are designed for extended service intervals.
• Precision Manufacturing: Every unit is built with meticulous attention to detail—from the German-standard control cabinet to the imported induction coil design—ensuring tight quality control and repeatable melt conditions. The use of a helium mass spectrometer for leak detection reflects our commitment to uncompromising vacuum integrity.
• Enhanced Operational Safety: Advanced protection circuits, high-temperature cooling hoses rated for 130°C, and zero-potential startup all contribute to a safer operating environment, protecting both operators and the facility. The standardized cabinet layout also simplifies integration into existing safety and monitoring systems.
• Customization and Support: Backed by a team with extensive thermal processing expertise, this system can be tailored to specific process requirements, including custom crucibles, additional gas circuits, or automation features. We provide responsive technical support to keep your operations running smoothly, from installation to ongoing maintenance.

Contact us today to discuss your unique application and request a customized quotation—our engineers are ready to help you achieve your melting goals with a solution built around your needs.
