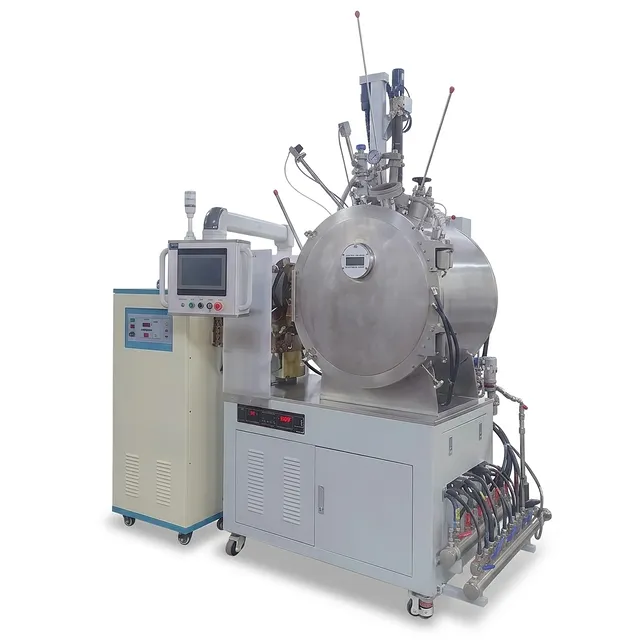

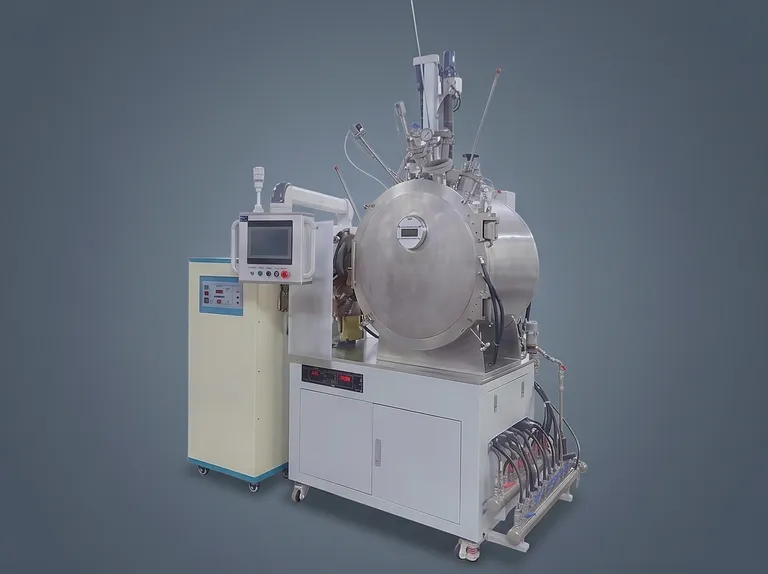

Horizontal Vacuum Induction Melting Furnace for Metal Alloy Preparation and High Temperature Graphite Sintering

Product Overview

This advanced vacuum induction melting system represents the pinnacle of high-temperature laboratory thermal processing, designed specifically to meet the rigorous demands of modern materials science and industrial research. By utilizing high-frequency induction heating, the system couples electromagnetic energy directly into conductive charges, enabling exceptionally rapid melting times with complete thermal uniformity. The horizontal chamber layout provides unmatched accessibility for research technicians, allowing for the precise synthesis of high-purity alloys, advanced composites, and experimental materials under strict atmosphere-controlled conditions.

Engineered for exceptional versatility across diverse research fields, the equipment functions as a multi-purpose thermal processing platform capable of handling metal alloy preparation, cast iron remelting, non-metallic sintering, and high-temperature graphite crystallization. Target users span metallurgical laboratories, aerospace research centers, semiconductor material developers, and university R&D facilities requiring a reliable, repeatable environment to synthesize new material formulations. Whether processing reactive refractory metals or complex composite materials, this unit delivers consistent, repeatable results that accelerate thermodynamic studies and product development cycles.

Constructed with an uncompromised commitment to safety and engineering excellence, this system guarantees long-term operational reliability under severe thermal conditions. Featuring a heavy-duty, double-walled stainless steel chamber with an integrated water-cooling jacket, it protects laboratory personnel by keeping outer surface temperatures safe during continuous high-temperature runs. B2B buyers can invest with confidence, knowing the robust mechanical systems, high-vacuum seals, and precise electronic control elements are built to withstand the demanding cycles of active industrial laboratories and prototyping environments.

Key Features

• Rapid Induction Heating Performance: Utilizing advanced high-frequency induction coupling, the furnace delivers rapid thermal ramp rates that enable full charge melting and sample evaluation within 10 minutes. This exceptional heating speed reduces cycle times, minimizes energy consumption, and limits thermal degradation of sensitive specimens.
• Dual-Zone High-Temperature Versatility: Engineered to operate across wide temperature ranges of 500°C to 1700°C and 1000°C to 2400°C, this system accommodates low-temperature non-ferrous alloys as well as high-temperature refractory metals and graphitization processes, offering unparalleled laboratory flexibility.
• Comprehensive In-Situ Melt Manipulation: Equipped with specialized physical ports and mechanics, the unit enables operators to perform secondary charging, mechanical stirring, slag raking, product sampling, and direct temperature measurement without compromising the protective vacuum chamber seal.
• Advanced High-Vacuum and Gas Management: Achieves an ultimate vacuum level of 6.7 × 10⁻³ Pa, creating an oxygen-free environment that prevents material oxidation. Flexible gas routing allows seamless processing under high vacuum, vacuum with gas backfill, or positive pressure inert gas configurations.
• Precision Tilt-Pour Casting Mechanism: Features an ergonomic, internally integrated mechanical tilting device that enables precise, controlled pouring of the molten charge into pre-heated or custom molds, ensuring highly uniform casting and sample shape definition.
• Non-Contact Real-Time Infrared Pyrometry: Incorporates a high-precision infrared temperature sensor focused directly on the crucible, providing continuous real-time temperature tracking and closed-loop control to ensure highly accurate thermal profiles.
• Double-Wall Water-Cooled Chamber Security: The heavy-duty stainless steel chamber incorporates an active water-cooling jacket that guarantees the external shell temperature remains below 35°C, preventing thermal hazards and protecting laboratory personnel.
• Intelligent PLC Touchscreen Control Interface: A highly intuitive digital control system visualizes the complete mechanical schematic, allowing operators to monitor valve positions, vacuum levels, water flow, and induction power through a unified human-machine interface (HMI).

Applications

Technical Specifications

This highly sophisticated, horizontal vacuum induction melting system is built to standard specifications but supports extensive engineering customization to fit specific process requirements. All structural, mechanical, and electrical components are integrated into a compact, laboratory-friendly footprint.

Why Choose This Product

• Industrial Grade Structural Integrity: Built using premium SUS304 double-walled stainless steel, the furnace chamber provides exceptional chemical and thermal resistance, ensuring decades of reliable service in hostile metallurgical research environments.
• Advanced Safety Standards: The active water-cooling design ensures that despite internal temperatures scaling up to 2400°C, the outer shell remains cold to the touch (≤35°C), protecting valuable laboratory personnel and auxiliary electronics.
• Process Control Precision: The integration of high-resolution PLC systems alongside non-contact infrared temperature measurement enables tight thermal tracking, giving research engineers highly repeatable melting environments.
• High Degree of Customization: From customized crucible sizes ranging between 3kg and 5kg to custom port allocations and automation sequences, our engineering department designs systems tailored to your laboratory's unique metallurgical protocols.
• Turnkey Commissioning Support: We back our equipment with expert technical consultation, remote guidance, and on-site physical installation support to ensure your laboratory experiences seamless startup, calibration, and training.

Contact our technical sales team today to request a comprehensive quotation or discuss customized chamber configurations tailored to your research requirements.
