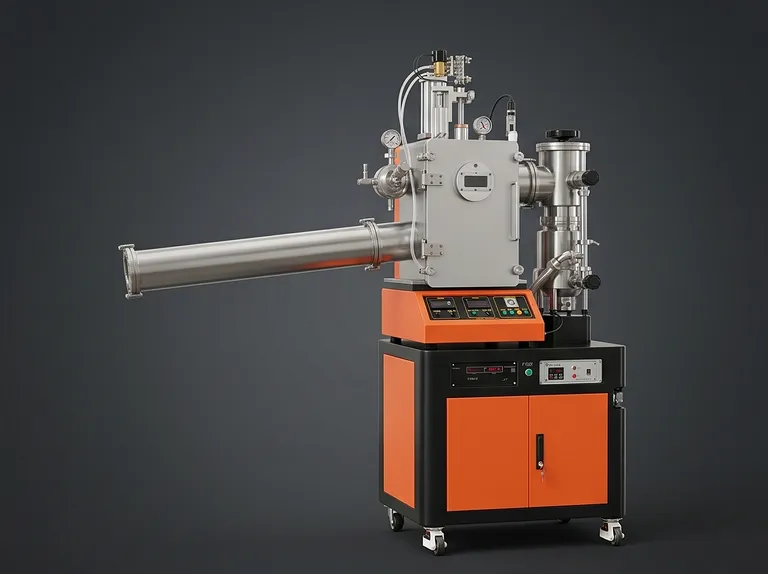

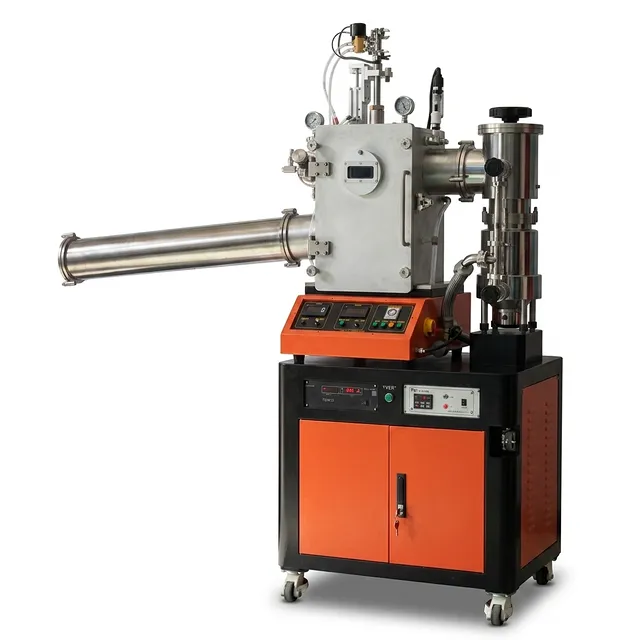

Integrated Desktop Vacuum Melt Spinner for Rapid Solidification and Amorphous Alloy Ribbon Fabrication

Product Overview

This advanced benchtop vacuum melt spinning system is designed to provide material scientists and metallurgists with a highly controlled environment for rapid solidification. By combining high-frequency induction heating with a high-speed rotating copper roller, the equipment enables the fabrication of amorphous and nanocrystalline ribbon samples directly from liquid metal. The integrated tabletop design maximizes space efficiency while maintaining the robust structural integrity required for precise high-temperature processing under controlled atmospheres or high vacuum.

Targeting research laboratories in academic institutions, industrial R&D facilities, and aerospace engineering departments, the unit is optimized for processing a variety of advanced alloys, metallic glasses, and magnetic materials. It allows users to transition rapidly from raw materials to thin, uniform ribbon structures, facilitating comprehensive structural, mechanical, and magnetic analysis. The compact layout makes it an invaluable tool for rapid alloy screening and formulation testing.

Engineered with a heavy-duty stainless steel chamber and highly reliable vacuum seals, this system ensures minimal contamination and superior repeatability across successive runs. It provides the thermal stability and rotational precision necessary to maintain consistent ribbon quality, even when processing challenging refractory metals or highly reactive alloy compositions. Operators can rely on its robust construction for continuous performance in demanding laboratory environments.

Key Features

• Integrated Desktop Footprint: The entire system—including the vacuum chamber, induction heating power unit, motor control system, and vacuum valves—is housed within a single compact framework. This layout minimizes floor space requirements and facilitates installation on standard laboratory workbenches without compromising operational functionality.
• High-Frequency Induction Melting: Powered by an integrated 7 kW induction source, the system rapidly heats metallic samples to temperatures ranging from 500°C to 1700°C. This allows for the clean, contact-free melting of a wide variety of metals and alloys inside quartz crucibles, preventing crucible-sample reactions and ensuring high purity.
• Dynamic High-Speed Copper Roller: The unit features a precision-machined φ200mm x 40mm copper roller designed for rapid heat dissipation. Operating at linear speeds adjustable from 1 to 3000 r/min, it provides cooling rates up to $10^6$ K/s, which is critical for suppressing crystalline phase formation and achieving fully amorphous states.
• Robust Vacuum and Atmosphere Control: With a standard ultimate vacuum level of 10 Pa, the vacuum chamber protects reactive materials from oxidation. The system supports upgrades to diffusion or turbomolecular pump configurations to reach high-vacuum environments, and features gas inlet valves for purging with high-purity argon or other inert gases.
• Advanced Touchscreen HMI System: An integrated programmable logic controller (PLC) features a clear human-machine interface (HMI). Operators can monitor and control the roller speed, induction power, crucible positioning, ejection gas pressure, and chamber pressure dynamically from a single screen.
• Customizable Ejection Mechanism: The system utilizes a precise gas pressure ejection system to force the molten alloy through a narrow nozzle at the bottom of the quartz crucible onto the rotating copper roller. The ejection pressure and nozzle-to-roller gap are adjustable to ensure stable ribbon geometries and consistent widths.
• Comprehensive Safety Interlocks: To ensure safe laboratory operation, the equipment includes built-in protection against over-temperature, over-current, phase loss, and water-cooling failure, automatically shutting down critical power circuits if parameters deviate from safe ranges.

Applications

Rapid solidification processing via vacuum melt spinning is a critical method for engineering materials with non-equilibrium structures. By cooling molten metal at rates exceeding one million degrees Celsius per second, crystalline phases are suppressed, producing unique amorphous structures with optimized physical and chemical properties. The table below highlights key application areas for this equipment:

Technical Specifications

This section lists the exact operational parameters and mechanical specifications of the TU-SDC vacuum melt spinning system. Users can select from various configuration upgrades, including vacuum pump systems and customized crucible nozzles, to tailor the unit to specific experimental protocols.

Why Choose This Product

• Industrial-Grade Engineering: Built using premium stainless steel and robust mechanical assemblies, the system guarantees long-term durability and operational uptime in busy research laboratories.
• Exceptional Process Repeatability: By combining precise PLC control over induction heating, gas ejection pressure, and roller speed, the unit ensures that research results are consistent and reproducible across multiple experimental batches.
• Tailored Customization Solutions: We provide extensive customization options, from specialized crucible geometries to advanced vacuum pumping stations, allowing the equipment to align perfectly with your specific research objectives.
• Comprehensive Technical Support: Our experienced engineering team offers complete lifecycle support, including system calibration, remote troubleshooting, and process optimization assistance.

Contact our sales team today to request a detailed technical quotation or to discuss a custom configuration tailored to your laboratory's material processing requirements.
