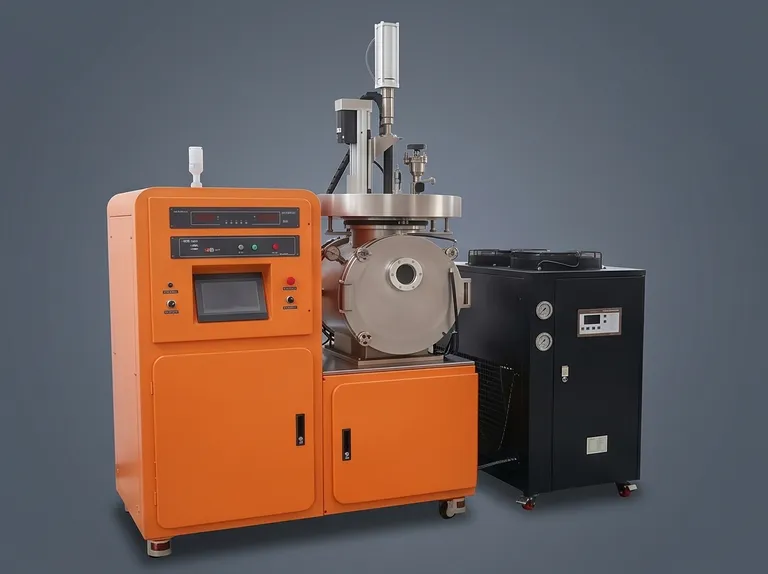

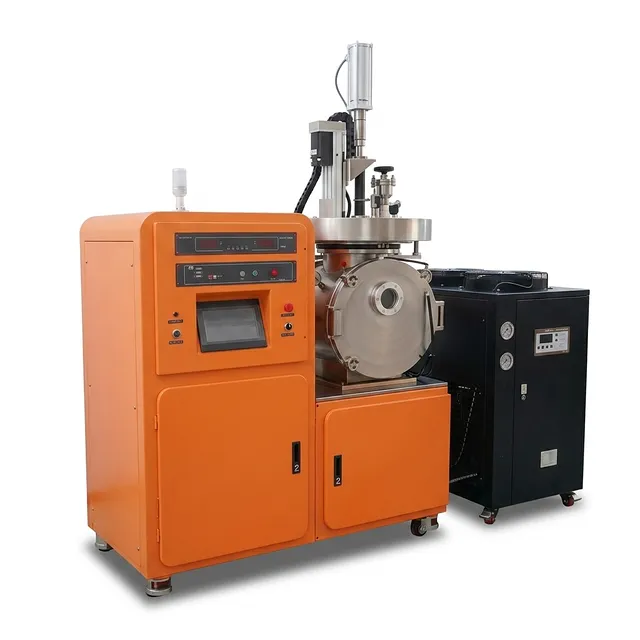

Vacuum Induction Melting Furnace for Metallic Lithium Processing and High Purity Metallurgy

Product Overview

This advanced vacuum induction melting system represents the pinnacle of high-temperature thermal processing, specifically engineered for the extraction, reduction, and refining of volatile and highly reactive metals. By combining rapid electromagnetic induction heating with a sealed vacuum chamber, the equipment facilitates efficient thermodynamic reduction, allowing operators to achieve exceptional material purity.

Designed for critical metallurgical research and industrial R&D, this unit is widely utilized in the thermal reduction of spodumene to produce high-purity metallic lithium. The system also excels in synthesizing advanced alloys and degassing reactive metals under precise atmospheric conditions.

Built for continuous operation at extreme temperatures, this furnace features robust water-cooled components and integrated safety systems to handle hazardous vapors. Users can rely on this system to deliver highly repeatable results under demanding vacuum conditions, ensuring long-term operational consistency.

Key Features

• High-Temperature Reduction Performance: The system is engineered to achieve sustained reduction temperatures of approximately 1550°C. This extreme thermal capability is crucial for driving the carbothermic reduction of spodumene, allowing metallic lithium vapor to rapidly escape the melt for efficient collection.
• Ultra-Low Vacuum Environment: Equipped with a multi-stage vacuum pumping stack, the furnace maintains stable operating pressures between 10⁻² and 10⁻³ torr. This low-pressure environment is critical for preventing the oxidation and nitridation of highly reactive metals while facilitating the desorption of dissolved gases.
• High-Efficiency Induction Heating: The medium-frequency solid-state induction power supply couples directly with the crucible material, ensuring rapid, uniform heat distribution. This direct heating method reduces energy consumption, minimizes thermal lag, and allows for precise control over heating rates.
• Advanced Volatilization Control: The furnace incorporates a specialized condensation system designed specifically to capture high-vapor-pressure metallic vapors. By controlling the temperature gradient between the crucible and the condenser, the system ensures optimal deposition and recovery rates for volatile elements.
• Inert Atmosphere Purging: In addition to operating under deep vacuum, the chamber can be purged with high-purity inert gases such as argon. This provides flexibility for processes that require a protective cover gas rather than a vacuum, protecting sensitive alloys from environmental contamination.
• Double-Walled Water-Cooled Chamber: The vacuum chamber is constructed from heavy-duty SUS304 stainless steel with an integrated water-cooling jacket. This design prevents thermal distortion, maintains low external surface temperatures, and ensures structural integrity during long-duration runs.
• Precision Programmable PLC: The automated control system utilizes an industrial PLC paired with a touch-screen HMI, enabling operators to program complex multi-ramp heating profiles. Real-time monitoring of vacuum level, power output, water flow, and temperature ensures precise execution of sensitive metallurgical processes.
• Comprehensive Safety Interlock Network: Designed for hazardous industrial environments, the system features automated safety shut-offs for over-temperature, cooling water failure, and vacuum loss. These safety protocols prevent accidents, protect valuable samples, and safeguard the equipment from damage.

Applications

Technical Specifications

Vacuum Chamber and Structure

The vacuum chamber of the TU-RL32 is engineered for demanding industrial workloads, featuring a double-walled, water-cooled design constructed entirely from high-grade SUS304 stainless steel. The inner surface is electropolished to minimize outgassing and facilitate quick pump-down times. The chamber door is mounted on a heavy-duty hinge with dual-seal Viton O-rings, ensuring an airtight seal even under high vacuum conditions. Multiple viewing ports with protective quartz glass shields allow operators to monitor the melting process visually without exposure to harmful radiation or vapor deposits.

Induction Heating and Power Management

The system utilizes a state-of-the-art medium-frequency induction heating power supply based on advanced IGBT inverter technology. The power supply automatically tracks the resonance frequency of the coil and load, optimizing energy transfer throughout the heating cycle. The induction coil is fabricated from high-conductivity, heavy-gauge copper tubing, cooled internally by a dedicated water circuit. This coil geometry is optimized to provide uniform electromagnetic field distribution, ensuring even heating of the crucible and preventing local hot spots.

High-Vacuum Pumping System

To maintain the low-pressure environment necessary for metallic lithium volatilization, the TU-RL32 incorporates a high-performance vacuum stack. This stack includes a mechanical backing pump, a Roots blower for high pumping speed in the medium-vacuum range, and a fractionating oil diffusion pump to reach ultimate vacuum pressures of 10⁻³ torr. The system is equipped with automated pneumatic vacuum valves and digital Pirani/Penning gauges to monitor and control vacuum levels throughout the entire heating and cooling cycle.

Integrated Condensation Unit

For operations involving the reduction and recovery of lithium, a dedicated vapor condenser is positioned directly above or adjacent to the crucible exit. The condenser is water-cooled, maintaining a precise temperature gradient that allows metallic vapors to deposit efficiently while preventing blockages. The collector cup is easily removable for safe harvesting of the condensed metallic lithium under an inert glove box environment.

Why Choose This Product

• Optimized for Reactive Metal Thermodynamics: The system is specifically engineered to handle the challenges of processing highly reactive and volatile metals like lithium. Its integrated vapor condensation and inert purging systems prevent degradation and maximize material recovery.
• Industrial-Grade Vacuum Stability: By utilizing high-vacuum components and a double-walled stainless steel chamber, the furnace ensures exceptionally low leak rates and minimal outgassing. This guarantees a clean, contamination-free processing environment.
• Precision Temperature and Process Control: Equipped with advanced PID temperature controllers and optical pyrometers, the unit maintains temperature stability within ±1°C. This allows operators to execute exact heating profiles required for sensitive reduction reactions.
• Robust Safety and Interlock Architecture: Built with comprehensive safety interlocks, the furnace automatically responds to utility failures (cooling water, power, or vacuum loss), protecting both the operators and the equipment from hazardous conditions.
• Customizable Configurations: We provide extensive customization options, including specialized crucible materials, automated tilt-pour mechanisms, and tailored condenser geometries to meet the specific requirements of your research or production line.

Contact our application engineering team today to discuss how our vacuum induction melting systems can optimize your metallic lithium production and high-temperature metallurgical research.
