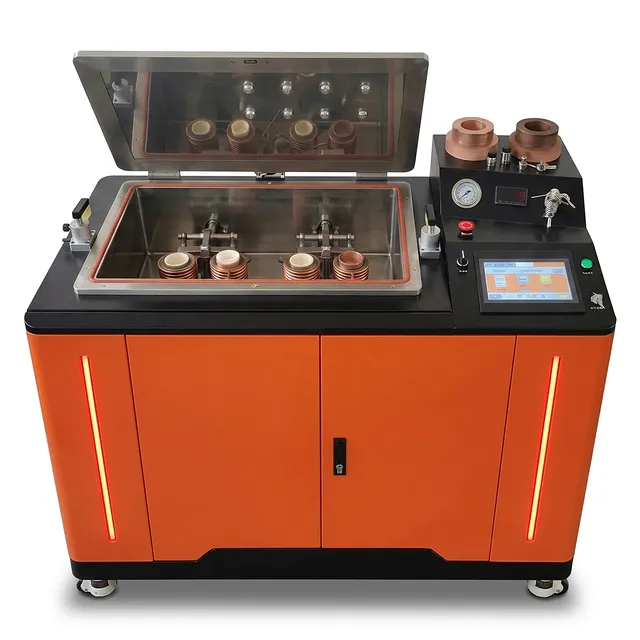

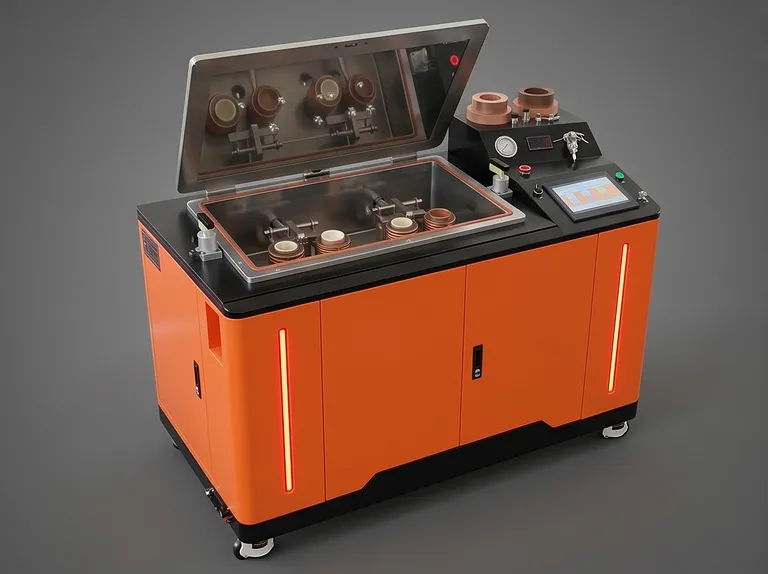

Four Station Automatic Vacuum Induction Melting Furnace High Frequency Alloy Sample Preparation System

Product Overview

This state-of-the-art thermal processing system represents a breakthrough in high-temperature material synthesis and sample preparation. Engineered for demanding laboratory and industrial R&D environments, the equipment integrates high-frequency induction heating with robust vacuum and atmosphere control to deliver highly consistent, homogeneous alloy samples. Its advanced multi-station configuration facilitates high-throughput processing, drastically reducing sample preparation cycles while maintaining impeccable analytical purity.

Designed primarily for material science laboratories, metallurgy research institutes, and quality control departments, this system is optimized for alloying, cast iron remelting, spectrographic sample preparation, and advanced material sintering. It provides researchers and procurement teams with a versatile, clean-running platform that accommodates various crucibles and atmospheres to meet strict testing standards.

With a heavy-duty chassis, automated PLC-guided mechanics, and comprehensive thermal and vacuum monitoring, the unit ensures long-term operational reliability. Users can confidently execute complex, repeatable melting procedures under extreme vacuum or controlled inert gas environments, securing precise outcomes even in the most intensive continuous-use conditions.

Key Features

• Four-Station High-Throughput Processing: Designed with a multi-station configuration supporting up to four positions (with dual-station active preparation modes), this system allows operators to prepare multiple samples simultaneously or in rapid succession, maximizing laboratory throughput and research efficiency.
• High-Frequency Induction Heating: Incorporating a highly efficient induction heating engine, the unit rapidly achieves operational melting temperatures up to 1700°C, ensuring rapid thermal cycles, high energy efficiency, and direct thermal transfer to metallic and alloy payloads.

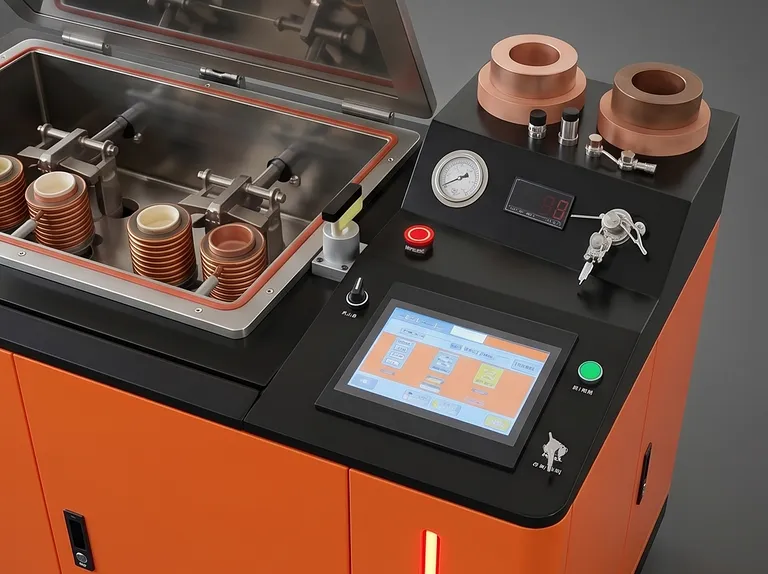

• Precision PLC HMI Control Panel: A fully integrated industrial touchscreen PLC interface allows operators to easily configure, store, and execute over 20 unique thermal and mechanical recipes, supporting single-touch automated execution of complex multi-stage melting routines.
• Advanced Dual-Axis Crucible Motion: The system features active crucible self-rotation (0-40 r/min) and wide-angle physical swaying (90° sway at 20 r/min), providing mechanical agitation that promotes thorough material mixing, eliminates thermal gradients, and yields highly uniform alloys.
• Flexible Environmental Management: Engineered with robust vacuum sealing capable of reaching ultimate vacuums down to 10Pa, the system fully supports operations under deep vacuum, inert gas purging, combined vacuum/gas cycles, or standard atmospheric conditions.
• Integrated Non-Contact Temperature Monitoring: A high-precision external infrared pyrometer continuously tracks and monitors the real-time melting temperature of the sample within the crucible, preventing overheating and ensuring precise adherence to pre-set thermal profiles.
• Automated Tilting and Pouring System: Equipped with an ergonomic furnace body tilting mechanism with a pouring angle of up to 110°, the system supports both manual and automated high-temperature molten material pouring for reliable, slag-free casting.
• Motorized Chamber and Automatic Lock: Featuring a high-torque motorized chamber door lift with built-in automatic mechanical locking, the unit ensures pressure-tight sealing during vacuum phases and effortless loading/unloading between cycles.

Applications

Technical Specifications

Why Choose This Product

• Unrivaled Thermal and Mechanical Precision: Every component of the system, from the heavy-duty induction generator to the robust dual-axis rotation motors, is manufactured to strict industrial tolerances. This ensures perfect synchronization of heat and mechanical agitation, delivering exceptionally uniform sample microstructures batch after batch.
• Rugged, Multi-Environment Build Quality: Built with high-grade industrial materials and a heavy-gauge steel framework, the system is designed to withstand continuous high-temperature operations under intense vacuum or pressurized gas. Robust vacuum seals and durable mechanical lifts ensure years of maintenance-free service.
• Versatile, Custom-Engineered Adaptability: With interchangeable crucibles, customized process recipes, and flexible atmosphere control, this system adapts to your evolving R&D requirements. Whether you are prepping fragile optical glass or hard superalloys, the unit is easily configured to your exact specifications.
• Global Standards and Certified Safety: Engineered with multi-layered safety interlocks, over-temperature protection, vacuum loss alarms, and automatic chamber locking, the furnace satisfies the most stringent lab safety guidelines. We ensure every unit undergoes rigorous multi-point factory testing before shipping.
• Responsive Support and Application Engineering: As a leading manufacturer of advanced thermal processing systems, we offer comprehensive technical support, on-site installation, and specialized application consulting. Our engineers work directly with your procurement and research teams to optimize your workflow.

Contact our technical sales team today to request a detailed quotation or discuss how we can customize this high-frequency induction melting platform to integrate seamlessly into your laboratory workflow.
