Vacuum Sintering Furnace

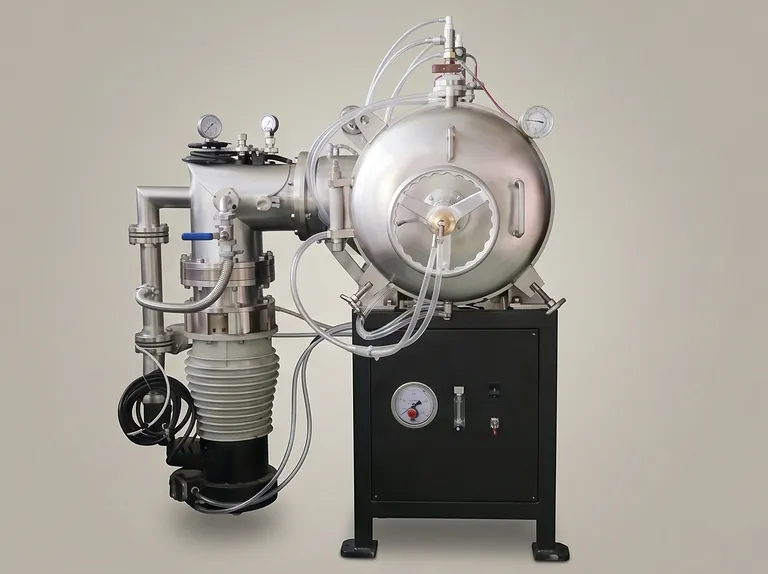

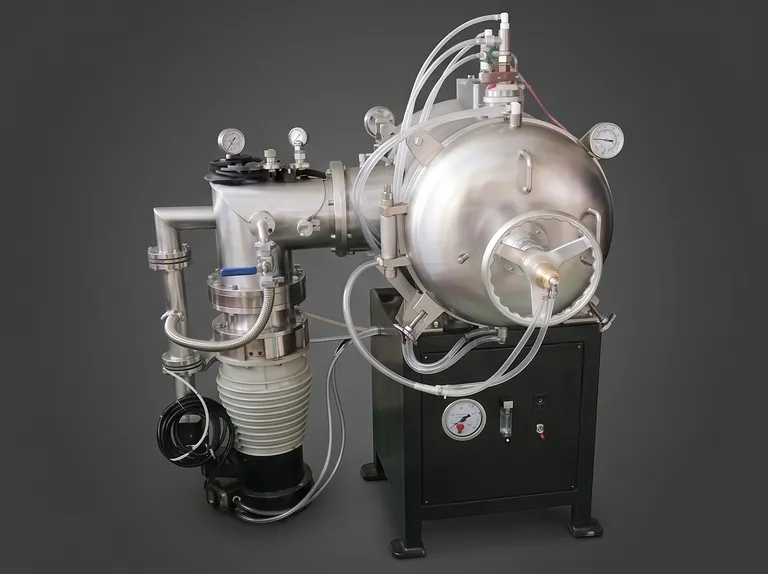

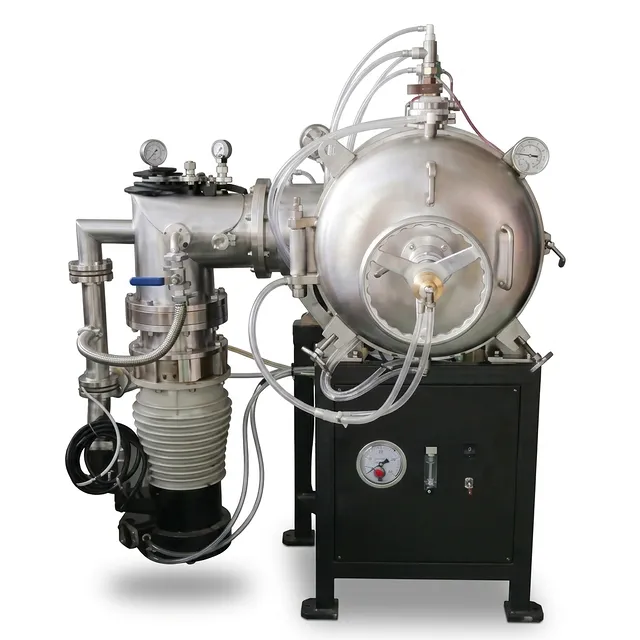

Rotary Vacuum Sintering Furnace for High-Temperature Graphite Tube Processing
Item Number: TU-SJL
Shipping: Contact us to get shipping details Enjoy On-time Dispatch Guarantee.
Product Overview
This rotary vacuum sintering furnace is a high-performance thermal processing system designed for precision sintering of advanced materials under vacuum or protective atmosphere. Its graphite tube heating element achieves exceptional temperature uniformity and control, making it ideal for demanding industrial and research applications.
The system serves a broad range of industries including aerospace, electronics, and material science, where it processes hard alloys, technical ceramics, rare earth elements, and optical materials. Its rotating crucible and side-door design ensure efficient, contamination-free loading and unloading.
Engineered for long-term reliability, this unit combines robust construction with advanced automation, delivering consistent results in rigorous production environments. Its precision and durability make it a trusted investment for critical sintering processes.
Key Features
- Integrated Compact Design: Self-contained construction with caster wheels enables easy relocation and rapid installation without complex site work, saving time and resources.
- Side-Door Crucible Rotating Mechanism: Unique side-opening door and rotating crucible provide smooth, ergonomic handling of samples, reducing the risk of contamination and improving operational efficiency.
- Advanced PLC Touchscreen Control: Intuitive interface with powerful automation allows precise management of sintering parameters, with the ability to store and recall dozens of pre-set recipes, minimizing operator error and ensuring repeatability.
- Real-Time Data Logging: Onboard system records temperature, vacuum level, and other critical data; users can start/stop recording, query historical logs, and export for quality assurance and process optimization.
- High-Temperature Graphite Heating: Graphite tube heating element delivers outstanding thermal performance, reaching up to 2300°C, with excellent thermal uniformity for demanding sintering applications.
- Precision Temperature Regulation: Infrared pyrometer-based control and measurement achieve ±1°C accuracy, guaranteeing consistent, high-quality sintering outcomes cycle after cycle.
- Integrated Water Cooling System: Built-in water chiller eliminates the need for external cooling circuits, simplifying installation and reducing long-term maintenance requirements.
- Versatile Atmosphere Control: Supports both vacuum and inert gas environments, providing the flexibility needed for a wide variety of material processes.
Applications
| Application | Description | Key Benefit |
|---|---|---|
| Hard Alloy Sintering | Sintering of hardmetal components such as cutting tools and wear parts in vacuum or controlled atmosphere. | Achieves high density and uniform microstructure, enhancing mechanical properties and tool life. |
| Advanced Ceramics Processing | Processing of silicon carbide, zirconia, alumina, and other technical ceramics for seals, armor, and structural parts. | High-temperature capability ensures complete densification and purity preservation for demanding applications. |
| Rare Earth Element Purification | Purification and thermal treatment of rare earth oxides and intermediates used in electronics and magnets. | Precision temperature and atmosphere control enable high-purity material refinement with minimal contamination. |
| Rhenium and Precious Metal Sintering | Specialized sintering of rhenium and other high-value metals for aerospace and semiconductor components. | Uniform heating and crucible rotation promote homogeneous sintering, reducing defects and improving yield. |
| Sapphire Annealing | Post-growth annealing of sapphire crystals for optical and electronic industries. | Controlled thermal cycles relieve internal stress and improve crystal quality, essential for high-performance optics. |
| Optical Material Sintering | Sintering and purification of specialized glasses and crystals for lenses and laser components. | High vacuum and precise temperature profiles ensure clarity, homogeneity, and optimal optical performance. |
Technical Specifications
| Specification | Details |
|---|---|
| Model | TU-SJL |
| Power Supply | 380V, 50Hz |
| Heating Power | 36 kW ±10% |
| Design Temperature | 2200°C |
| Rated Temperature | 0~2100°C |
| Working Zone Size | Φ120 × 300 mm (Dia. × Length) |
| Temperature Control Zones | One zone |
| Temperature Control Method | Infrared pyrometer control and measurement |
| Temperature Control Accuracy | ±1°C |
| Crucible Rotation Speed | 0–20 rpm, adjustable |
Why Choose This Product
- Proven Long-Term Reliability: Built with premium graphite heating elements and a robust vacuum chamber, this system delivers consistent performance over thousands of cycles, reducing downtime and maintenance costs.
- Precision Manufacturing: Advanced PID infrared temperature control with ±1°C accuracy and a rotating crucible design guarantee uniform sintering, minimizing scrap rates and maximizing product quality.
- Flexible Process Integration: Dozens of customizable sintering recipes and intuitive PLC touchscreen operation make the system adaptable to a wide range of materials and R&D to pilot production scales.
- Comprehensive Support: Backed by our expert engineering team, we provide tailored solutions including custom tooling, atmosphere configurations, and on-site installation assistance to ensure your success from day one.
Contact us today to discuss your specific sintering requirements or request a customized solution.
