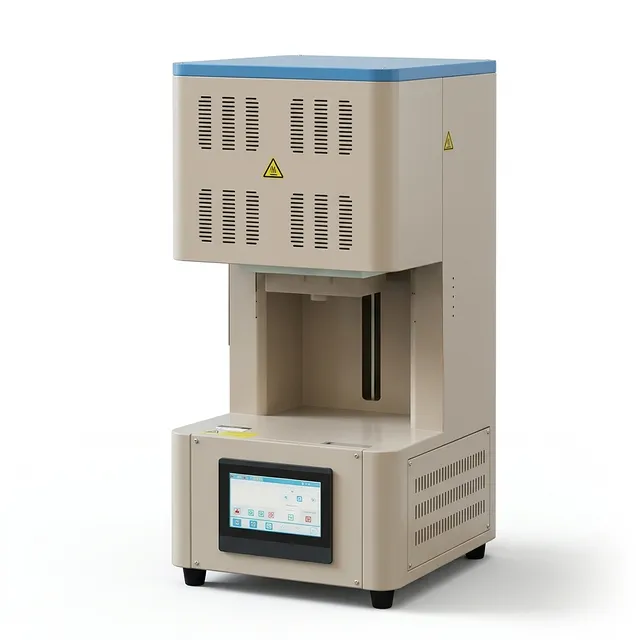

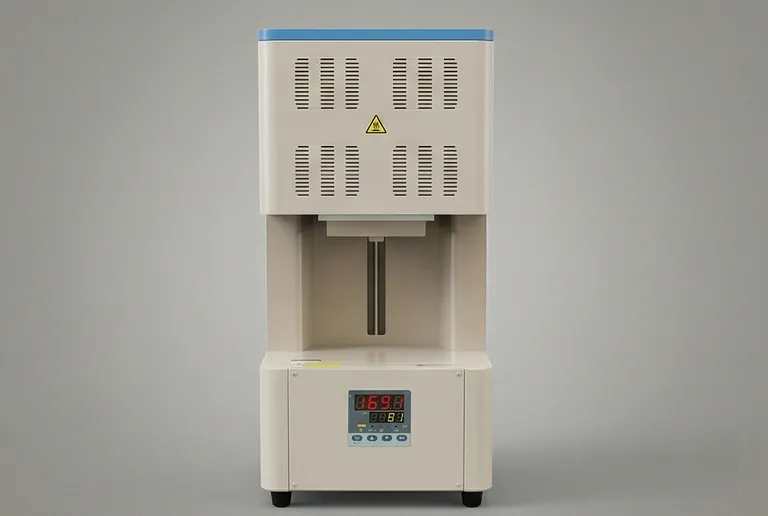

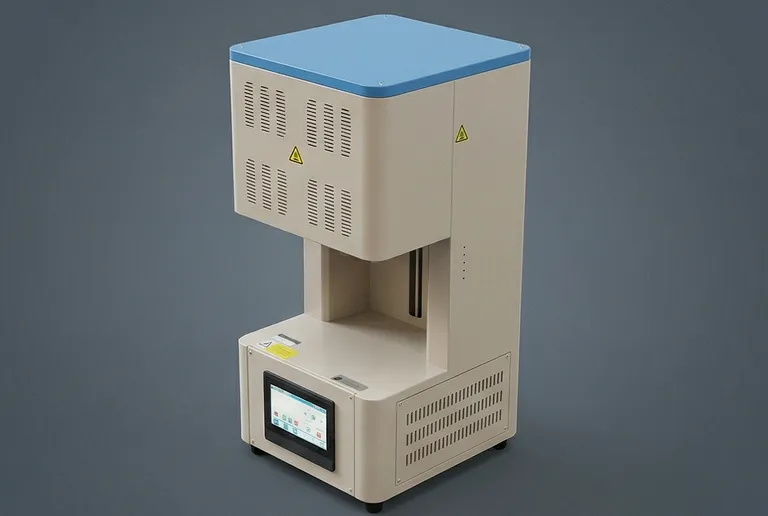

Automated 1700C High Temperature Bottom Loading Box Furnace with PC Software Control and Robotic Integration Capability

Product Overview

This high-performance thermal processing system represents the pinnacle of automated laboratory heating technology, specifically engineered for demanding material science and industrial research environments. By utilizing a bottom-loading design, the equipment ensures exceptional thermal uniformity and simplifies the handling of delicate or heavy samples. The core value of this system lies in its sophisticated integration of hardware and software, allowing for a completely hands-off operational workflow that enhances both safety and process repeatability. Whether used for sintering, annealing, or specialized heat treatments, the unit delivers consistent, high-accuracy results that meet the rigorous standards of modern R&D.

Designed for versatility and high-throughput environments, this equipment is ideally suited for academic research centers, aerospace component manufacturing, and advanced ceramics engineering. The bottom-loading mechanism is particularly advantageous for processes where vibration must be minimized during the loading phase. By moving the hearth rather than the heating chamber, the system protects the integrity of green-state materials and complex assemblies. This engineering focus on sample safety, combined with the ability to reach 1700°C, makes it a cornerstone for laboratories pushing the boundaries of high-temperature material behavior.

Reliability is at the heart of the system's construction. Built with a dual-layer shell and high-purity alumina fiber insulation, the furnace is designed for continuous operation at temperatures up to 1600°C without compromising external safety or internal stability. Procurement teams can invest with confidence, knowing the equipment is manufactured using premium grade components that resist thermal fatigue and degradation. The industrial-grade automation components ensure that every heating cycle is executed with precision, providing a robust solution for institutions where equipment uptime and data integrity are non-negotiable requirements for successful project outcomes.

Key Features

• Intelligent One-Key Automation: The system features a comprehensive software suite that enables the execution of entire sintering cycles with a single command. This includes the automated closing of the door, controlled temperature ramping, precision dwelling at peak heat, programmed cooling rates, and the final opening of the chamber, significantly reducing labor intensity and human error.
• Precision Bottom-Loading Mechanism: The automated elevator-style hearth allows for smooth and stable sample entry into the hot zone. This design is critical for maintaining thermal symmetry within the chamber and prevents the mechanical shock that can occur with front-loading hinged doors, ensuring that sensitive materials remain undisturbed throughout the process.
• Advanced PC-Based Control Architecture: Every unit includes a dedicated laptop computer pre-installed with proprietary control software. This allows for the simultaneous management of up to eight separate furnaces from a single workstation, making it an ideal choice for high-volume laboratories looking to centralize their thermal processing management.
• High-Purity Alumina Fiber Insulation: The furnace chamber is lined with premium high-purity alumina fiber material. This low-thermal-mass insulation provides superior energy efficiency, allows for faster heating and cooling rates (up to 10°C/min), and prevents the introduction of contaminants into the processing environment, which is vital for high-purity material synthesis.
• Industrial Networking and Communication: Equipped with a standard RJ45 communication interface and MODBUS RTU protocol, the equipment is ready for Industry 4.0 integration. This allows for seamless connection to external SCADA systems, remote monitoring, and detailed data logging for compliance and quality assurance tracking.
• Enhanced Thermal Safety Systems: The dual-layer shell structure incorporates an active fan cooling system, which maintains a low external surface temperature even during peak 1700°C operations. This feature protects laboratory personnel and prevents heat buildup in the surrounding environment, enhancing the overall safety profile of the facility.
• Sophisticated PID Regulation: Utilizing an intelligent 30-stage programmable PID controller, the system maintains a temperature accuracy of ±1°C. For ultra-sensitive applications, optional European controllers are available to increase precision to ±0.1°C, ensuring the most stable thermal environment possible for phase transformation studies.
• Optional Collaborative Robotic Integration: For true high-throughput automation, this system can be paired with an optional collaborative robot arm. This allows for fully autonomous sample loading and unloading, enabling 24/7 laboratory operations without the need for constant human supervision.

Applications

Technical Specifications

Why Choose This Furnace

• Unmatched Process Repeatability: By removing the variability of manual door operation and temperature tracking, the automated software ensures that every batch is processed under identical conditions, which is essential for valid scientific data and industrial quality control.
• Industrial-Grade Durability: From the high-grade Type B thermocouples to the heavy-duty elevator mechanism, every component is selected for its ability to withstand the rigors of 1700°C cycles over a long operational lifespan.
• Scalable Laboratory Efficiency: The ability to control up to eight units from a single computer allows your facility to scale production or research capacity without a linear increase in labor costs or footprint complexity.
• Superior Safety Integration: The combination of the dual-layer cooling shell and automated hearth movement keeps operators away from high-heat zones, significantly reducing the risk of accidental burns or exposure to radiant heat.
• Customizable Automation Solutions: Beyond the standard feature set, this system can be integrated with robotic arms and custom MODBUS software configurations to meet the specific throughput requirements of your facility.

Contact THERMUNITS today to discuss your specific thermal processing requirements or to request a detailed quotation for a customized high-temperature automation solution.
