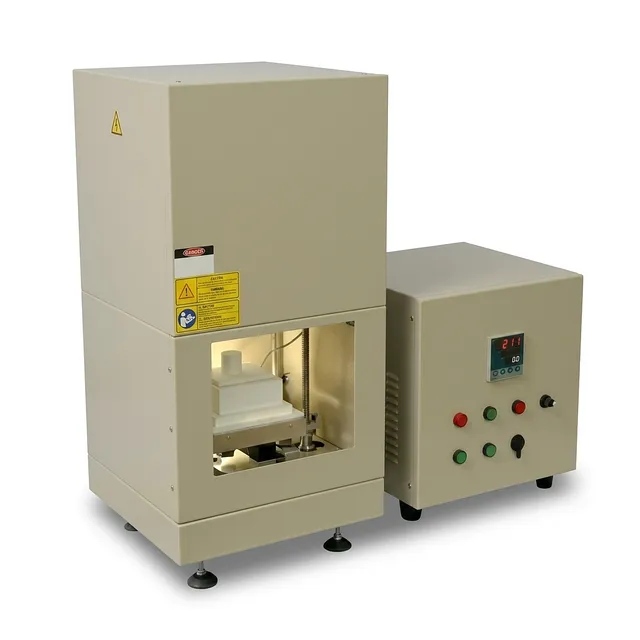

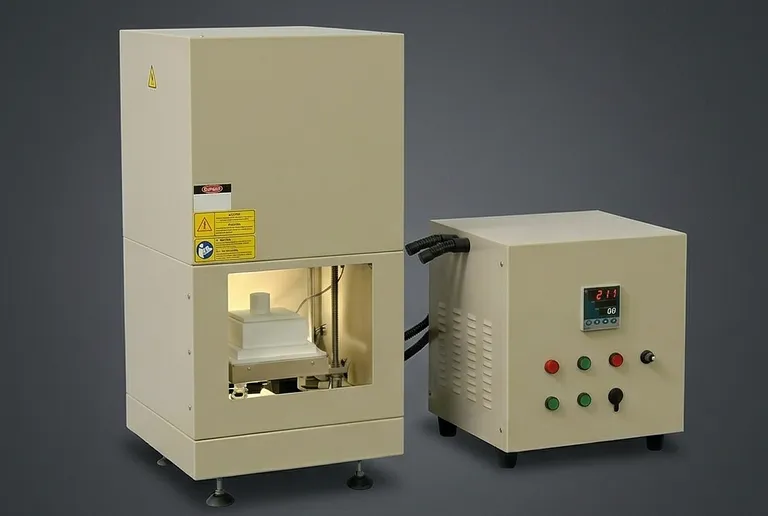

High Temperature Compact Automatic Bottom Loading Furnace with Rapid Cooling for Autonomous Material Research

Product Overview

This high-temperature thermal processing system represents a significant advancement in benchtop heat treatment technology, specifically engineered for laboratories where space optimization and automation are paramount. By utilizing a sophisticated bottom-loading architecture, the equipment facilitates seamless sample handling and integration with robotic systems, making it an essential component for modern, autonomous material research environments. The system provides a robust thermal environment capable of reaching sustained high temperatures, ensuring that researchers can conduct complex sintering, annealing, and melting processes with absolute confidence in thermal stability and repeatability.

Designed for the most demanding R&D applications, the unit features a compact footprint that allows for direct installation within standard industrial gloveboxes. This capability is critical for researchers working with atmosphere-sensitive materials that require heat treatment in controlled, moisture-free, or oxygen-free environments. The equipment bridges the gap between traditional manual laboratory furnaces and fully integrated industrial automation, offering the reliability and performance required for high-throughput material screening and advanced metallurgy.

Built with premium industrial-grade components, the furnace is designed to withstand continuous operation at elevated temperatures. The combination of high-grade Silicon Carbide (SiC) heating elements and advanced refractory insulation ensures excellent energy efficiency and long-term durability. Every aspect of this system, from its precision temperature control to its integrated cooling fans, has been optimized to deliver consistent, high-quality results in rigorous industrial and academic research settings, positioning it as a cornerstone for innovation in material science.

Key Features

• Automated Bottom Loading Mechanism: The precision-engineered lift system allows for smooth, vibration-free sample loading and unloading. This vertical movement is not only more ergonomic for manual use but is also specifically designed to interface with robotic arms, enabling 24/7 unmanned operation in high-throughput research facilities.
• High-Performance Silicon Carbide Heating: Equipped with 1500°C grade SiC heating elements, the system delivers rapid heating rates and excellent temperature uniformity throughout the 6-inch cubic chamber. These elements are chosen for their superior oxidation resistance and mechanical strength at peak operating temperatures.
• Rapid Thermal Cycling and Cooling: Integrated high-velocity cooling fans in the lower chamber allow for accelerated sample cooling once the platform is lowered. With cooling rates reaching up to 20°C per second, researchers can significantly reduce cycle times and study the effects of rapid quenching on material microstructures.

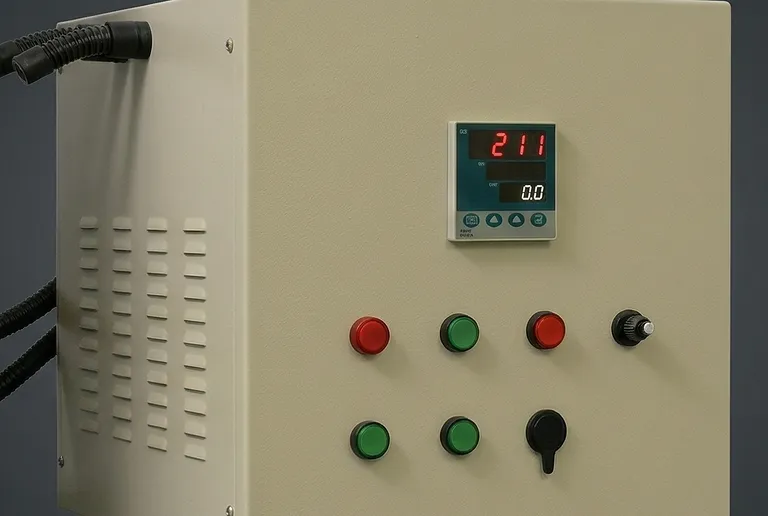

• Advanced PID Temperature Regulation: The unit features a sophisticated digital controller with 50 programmable segments. This allows for the creation of complex thermal profiles, including precise ramp, soak, and cool-down cycles, maintained with a temperature accuracy of ±1°C.
• Glovebox Compatible Footprint: The compact external dimensions are specifically tailored to fit through standard glovebox airlocks. This allows for the thermal processing of sensitive compounds under inert atmospheres without compromising the integrity of the controlled environment.
• Remote Control and Automation Ready: Featuring an RJ45 communication interface, the equipment supports remote monitoring and control via PC. The open communication protocol allows for seamless integration into existing lab management software and autonomous experimental workflows.
• Comprehensive Safety Systems: Built-in protection circuits prevent overheating and detect thermocouple failure, ensuring the safety of both the operator and the samples. The system's robust construction minimizes heat radiation to the surrounding environment, protecting peripheral equipment.
• Precision Thermometry: Utilizing a high-purity S-type thermocouple, the system ensures accurate temperature feedback even at the upper limits of its 1500°C range. This ensures that experimental data is reliable and that thermal processes are strictly adherent to specified protocols.

Applications

Technical Specifications

Why Choose TU-DZ16

• Engineered for the Future of Research: This system is not just a furnace but a modular component for the autonomous laboratory. Its ability to interface with external controllers and robotic loaders makes it a future-proof investment for organizations moving toward AI-driven material discovery.
• Unmatched Cooling Performance: The ability to achieve cooling rates of 20°C per second provides researchers with a powerful tool for quenching and phase-capture studies that are simply impossible with standard box or muffle furnaces.
• Precision and Reliability: With ±1°C accuracy and high-grade S-type thermocouples, this unit delivers the data integrity required for publishing in top-tier journals and developing proprietary industrial processes.
• Optimized for Sensitive Materials: The specific design focus on glovebox compatibility ensures that you can handle reactive or hazardous materials with the same precision as standard samples, maintaining total atmospheric control throughout the heating cycle.
• Industrial Build Quality: From the SiC heating elements to the heavy-duty lift mechanism, every component is selected for its ability to perform in high-duty cycle environments, ensuring a lower total cost of ownership over the life of the equipment.

Our technical team is ready to assist you in configuring the perfect thermal solution for your specific research needs; contact us today for a detailed quote or to discuss custom automation integration for your laboratory.
