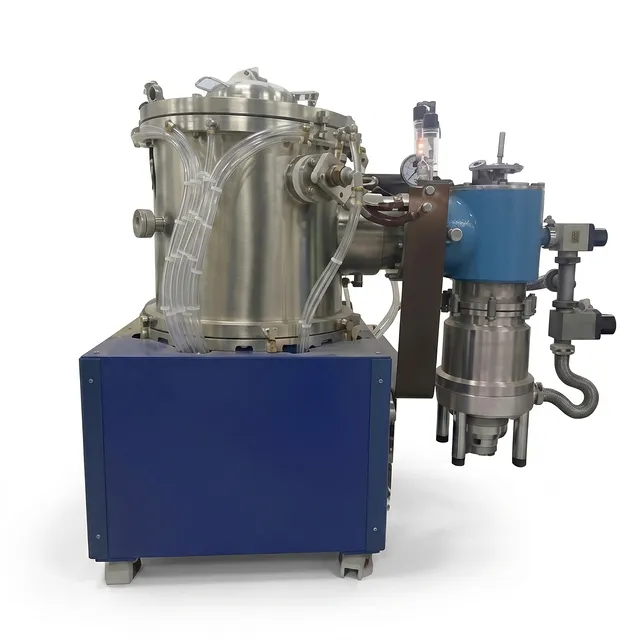

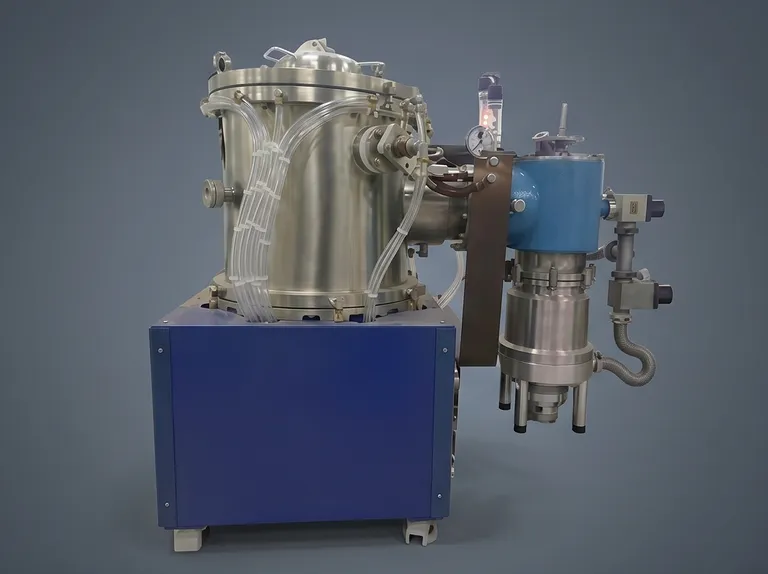

2300°C Vacuum Tungsten Wire Sintering Furnace

Product Overview

This high-temperature vacuum sintering furnace utilizes a robust tungsten wire heating element to achieve a maximum design temperature of 2300°C, with a usable operating range up to 2200°C. Engineered for advanced material processing, the system performs precision sintering, annealing, and degassing under high-vacuum or controlled inert gas atmospheres. Its all-stainless steel construction, combined with a high-performance vacuum pumping package, ensures an ultra-clean processing environment free from rust, scaling, and contamination, making it the ideal platform for developing next-generation ceramics, hard metals, specialty alloys, and custom heat treatment recipes for proprietary materials.

Universities, national laboratories, and industrial R&D teams turn to this furnace for pilot-scale production and process optimization. Typical applications include sintering of zirconia and alumina ceramics for medical and electronic components, liquid-phase sintering of cemented carbides for cutting tools, and heat treatment of reactive metals. The system’s ability to switch between vacuum and inert gas modes makes it exceptionally versatile for multi-step processes such as binder burnout followed by sintering. The unit supports multi-segment programmable temperature profiles with automatic control, enabling the precise thermal cycles required for complex material transformations.

Built for demanding continuous operation, the furnace incorporates extensive safety protections: water-flow interruption, overcurrent detection, and independent overtemperature alarms for both the heating chamber and cooling circuit. A dedicated pressure-relief mechanism guards against overpressure during gas-backfilled processes. Rugged mechanical design and rigorous factory testing deliver long-term reliability, making this system a trusted asset in critical research and production environments.

Key Features

• Advanced Safety Protections: The electrical circuit continuously monitors cooling water flow, current draw, and temperature at multiple points. Instantaneous automatic shutdown occurs upon detecting any anomaly, protecting both the furnace and the valuable workpieces inside. These layered safeguards enable safe unattended operation for long-duration sintering runs.
• Overpressure Relief System: An integrated furnace pressure relief device vents excessive internal gas pressure to prevent structural damage. This is particularly critical when operating under partial pressure or positive pressure atmospheres, where gas expansion from heating could otherwise breach the vessel integrity.
• Real-Time Furnace Body Monitoring: Temperature sensors mounted on the furnace shell provide active overheating protection. By constantly comparing shell temperature against safe limits, the system prevents insulation degradation and extends the overall service life of the unit, even after thousands of high-temperature cycles.
• Full Stainless Steel Construction: Every component in the water-cooling circuit, including pipes, fittings, and the jacket, is fabricated from premium stainless steel. This choice eliminates rust and mineral scale accumulation, ensuring consistent coolant flow and heat removal while maintaining a clean laboratory environment.
• Programmable PID Temperature Control: A sophisticated PID controller allows users to define and store multiple temperature profiles with precise ramp rates, dwell times, and final temperatures. One-touch initiation executes the selected profile automatically, while simultaneous infrared thermometry provides closed-loop feedback for ±1°C accuracy.
• Hybrid Temperature Sensing: The system employs an automatic thermocouple insertion/retraction mechanism coupled with a non-contact infrared thermometer. At lower temperatures, the thermocouple provides accurate contact measurement; above its limit, it retracts and the IR sensor takes over, ensuring seamless control across the full 0–2200°C range.
• High Vacuum Capability: A purpose-matched vacuum pumping set—combining a rotary vane mechanical pump, a molecular pump, and high-conductance plumbing—achieves ultimate vacuum levels better than 5×10⁻⁴ Pa. This extreme vacuum is essential for processes requiring minimal oxygen partial pressure, such as sintering of non-oxide ceramics.
• Clean Atmosphere Sintering: An internal gas manifold permits backfilling with inert gases like argon, nitrogen, or forming gas. The furnace can maintain a stable positive pressure or a partial pressure equilibrium, protecting sensitive materials from oxidation or nitridation during high-temperature treatments.
• Scalable Automation: The standard analog control panel can be upgraded to a PLC with a color touchscreen interface. This upgrade unlocks recipe storage, real-time data logging, remote Ethernet/RS-485 communication, and compatibility with centralized factory automation systems for higher productivity and process traceability.

Applications

Technical Specifications

Why Choose This Product

• Proven High-Temperature Performance: The tungsten wire heating element is engineered for sustained operation at temperatures up to 2300°C, providing reliable thermal output across thousands of cycles. Rigorous in-house testing ensures each furnace meets stringent temperature uniformity and ramp-rate specifications before shipment.
• Exceptional Vacuum Integrity: With an ultimate vacuum below 5×10⁻⁴ Pa and a fully stainless-steel construction, the furnace creates a truly outgassing-free environment. This is critical when processing ultra-high-purity materials for semiconductor, optical, or aerospace applications where even trace contamination compromises performance.
• Operator-Centric Safety Design: Redundant protection circuits cover coolant flow, overcurrent, furnace overtemperature, and water overtemperature. The built-in pressure relief system adds an extra layer of security when working with internal gas pressures, making the furnace safe for extended unattended operation, even overnight.
• Versatile Processing Capabilities: From high vacuum to inert gas backfill, and from manual analog control to full PLC automation, the system adapts to your evolving process needs. Options include data logging, remote diagnostics, and recipe management, supporting both fundamental research and production ramp-up without hardware changes.
• Industry-Leading Support: Our dedicated team of application engineers assists with process development, custom fixturing, and on-site installation. We maintain ready stock of critical spare parts and provide rapid-response service to minimize downtime, ensuring your investment delivers maximum lifetime value.

Contact us today to request a quote or discuss your specific thermal processing requirements with our technical team.
