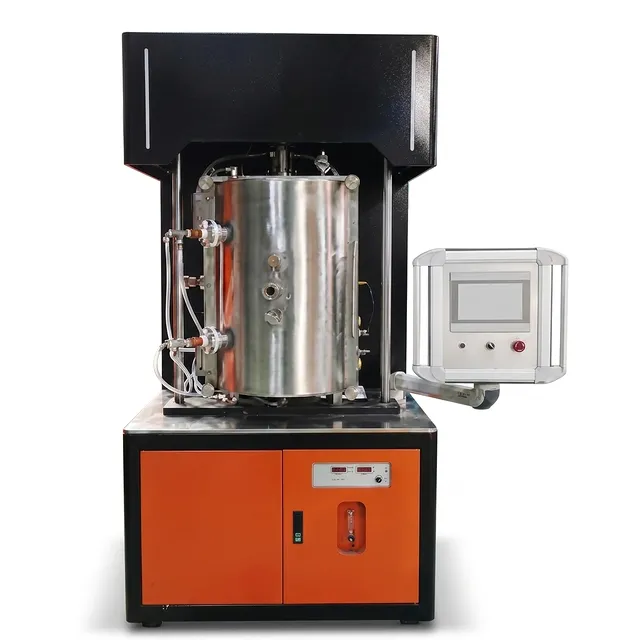

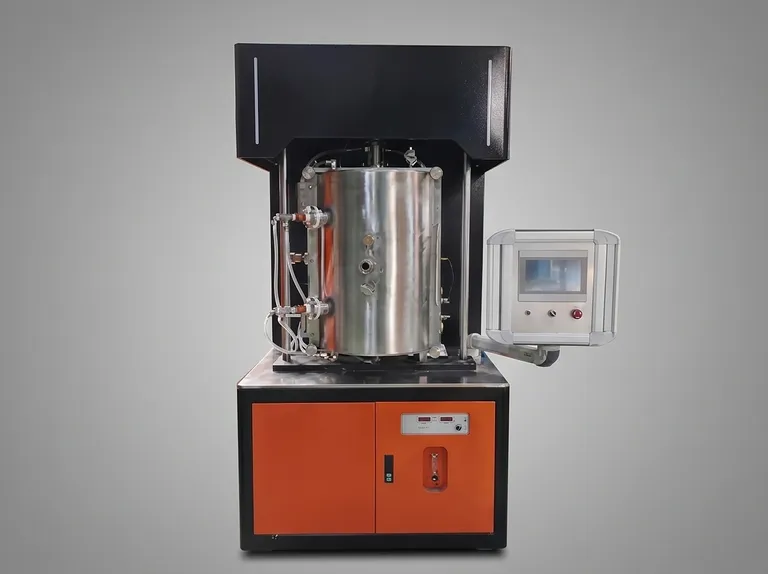

5 Ton Vacuum Diffusion Welding Sintering Furnace

Product Overview

This high-temperature vacuum system is purpose-built for diffusion welding and pressurized sintering of advanced materials, integrating precision heating, vacuum environment, and uniaxial pressing into a single reliable platform. It enables researchers and manufacturers to achieve near-theoretical densities in ceramic and metallic components through simultaneous application of controlled temperature and force.

Typical deployments include R&D laboratories at universities and industrial pilot lines, where the unit processes technical ceramics like silicon nitride and alumina, novel metal alloys, and nanostructured composites. Its ability to operate under high vacuum or protective inert atmospheres makes it ideal for oxygen-sensitive or contamination-critical applications, such as sputtering target production and diffusion bonding of dissimilar metals.

Designed for demanding thermal cycles, the furnace features a robust molybdenum band heating element array and a servo-electric pressure mechanism that together deliver exceptional thermal uniformity and force stability. The result is a dependable tool that produces consistent, publication‑grade sintered bodies and bonds, run after run, in continuous laboratory operation.

Key Features

• High‑Precision Temperature Control: A closed‑loop PID controller, using a tungsten‑rhenium thermocouple, holds the setpoint within ±1°C across the full range up to 1400°C. This tight regulation ensures uniform densification throughout the φ300×300 mm work zone, eliminating hot spots that could cause grain growth or incomplete sintering.
• Ultimate Vacuum Performance: A high‑vacuum pumping system achieves a cold‑limit pressure of 6.67×10⁻⁴ Pa, with a low pressure rise rate of only 3 Pa/h. Such a clean, high‑vacuum environment minimizes outgassing and surface contamination, enabling the processing of reactive metals and high‑purity ceramics.
• Servo‑Electric Pressure Regulation: The system applies 1–5 tons of force via a precision servo‑electric cylinder with automatic adjustment, holding, and digital readout. Pressure fluctuations are kept within ±100 N, and the linear displacement accuracy of ≤0.01 mm allows exact control over sample compaction and bond‑line thickness.
• Molybdenum Band Heating Technology: The heating element array is constructed from high‑purity molybdenum bands, chosen for their excellent high‑temperature strength, low vapor pressure, and rapid thermal response. This design provides a homogeneous temperature field and long service life even under repeated cycling to 1400°C.
• Inert Gas Over‑Pressure Capability: For processes that benefit from a slightly positive inert atmosphere, the furnace can be backfilled with argon or nitrogen to a maximum of 0.03 MPa (micro‑positive). This prevents oxidation while allowing convective heat transfer and suppressing volatile material loss.
• Intuitive PLC and Touchscreen Interface: Process management is handled by a programmable logic controller with a color touchscreen HMI. Operators can create, store, and execute multi‑segment recipes for temperature, vacuum, and pressure, with real‑time data logging for quality assurance and report generation.
• Compact and Versatile Work Zone: The φ300×300 mm hot zone accommodates a wide range of die sizes and sample geometries. This versatility suits the furnace for diverse applications, from small‑scale powder consolidation in 20 mm dies to larger diffusion bonding assemblies up to 100 mm in diameter.
• Comprehensive Safety Features: Built‑in safeguards include over‑temperature protection, over‑pressure protection, and electrical interlocks on the vacuum chamber. These features protect both the operator and the sample, ensuring the equipment meets rigorous laboratory safety standards.

Applications

Technical Specifications

Why Choose This Product

• Proven Long‑Term Reliability: The furnace is built around a rugged vacuum chamber and industrial‑grade molybdenum heating elements that have demonstrated thousands of high‑temperature cycles in university and contract‑research laboratories. Routine maintenance is minimal, and mean‑time‑between‑repairs is exceptionally long, ensuring your research stays on schedule.
• Precision Manufacturing for Critical Processes: The combination of servo‑electric pressure control with ≤0.01 mm displacement accuracy and ±100 N force stability enables the exacting tolerances demanded by advanced ceramics, multi‑material bonding, and nanostructured materials. This level of fidelity is essential for translating lab‑scale breakthroughs into reproducible industrial processes.
• Superior Build Quality and Safety: From the high‑vacuum sealing surfaces to the over‑temperature interlock system, every component is selected for durability and operator protection. The system is designed to hold vacuum for extended soak times, withstand repeated thermal cycling, and operate safely with minimal oversight.
• Customization and Application Support: Our engineering team regularly tailors this platform to specific customer requirements—whether that involves custom tooling, additional gas‑handling circuits, data‑acquisition upgrades, or integration into glove‑box lines. We work with you from specification through installation to deliver a turn‐key solution.
• Global Service and Responsive Support: With a worldwide network of factory‑trained technicians, we provide rapid installation, on‑site training, and ongoing after‑sales support. This ensures that your equipment delivers optimal performance throughout its operational life, backed by a team that understands the science of high‑temperature processing.

Contact our technical sales team today to request a quotation or discuss a customized solution for your high‑temperature sintering and diffusion welding applications.
