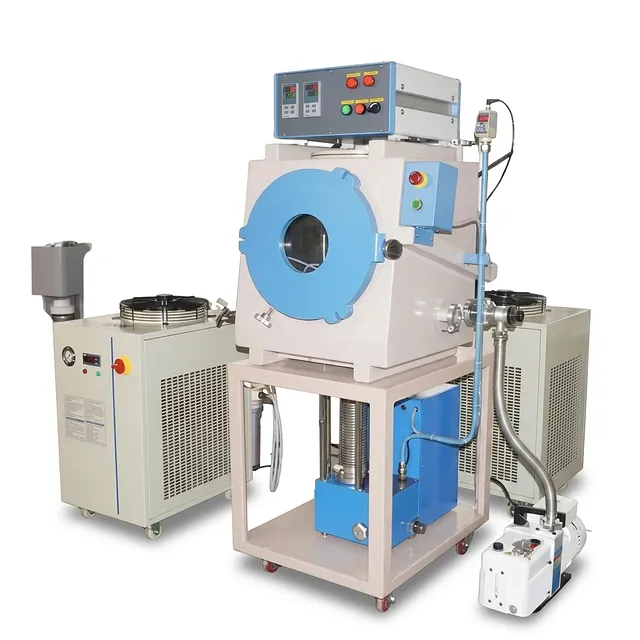

High Temperature Vacuum Lamination Hot Press Furnace Machine for Semiconductor Wafer Bonding and Advanced Composite Thermal Processing

Product Overview

This sophisticated thermal processing system represents the pinnacle of integrated engineering, combining a high-performance hydraulic press with an advanced electric heating system inside a controlled vacuum environment. Designed to facilitate the bonding of multiple material layers, the equipment eliminates atmospheric interference, ensuring that sensitive substrates are processed without oxidation or contamination. The core value proposition of this unit lies in its ability to simultaneously apply precise uniaxial mechanical pressure and uniform thermal energy while maintaining a high-vacuum state, resulting in near-theoretical density and superior bond strength for complex assemblies.

Primarily utilized in the semiconductor, aerospace, and advanced electronics industries, this system is the definitive solution for wafer bonding, LCP lamination, and thin-film transformations. Its multi-functional architecture allows researchers and industrial engineers to manage delicate material transitions that require a clean-room-equivalent environment within the processing chamber. Whether handling carbon fiber composites or intricate printed circuit boards, the equipment provides the stability and repeatability necessary for high-stakes R&D and specialized production runs.

Engineered for longevity and reliability under demanding industrial conditions, this unit features a robust SS304 stainless steel vacuum chamber and high-temperature resistant chromium steel heating platens. The inclusion of integrated water-cooling jackets ensures that the structural integrity of the hydraulic components is never compromised by the intense heat of the processing zone. This commitment to thermal management and mechanical rigidity ensures consistent performance across thousands of cycles, making it a reliable cornerstone for any laboratory or manufacturing facility focused on high-performance materials.

Key Features

• Integrated Vacuum Glove Box Environment: The hot pressing plates are housed within a precision-engineered vacuum chamber, providing a pristine, oxygen-free environment. This is critical for processing materials that are highly susceptible to oxidation at elevated temperatures, ensuring the chemical and physical integrity of the final product.
• Precision PID Thermal Management: Equipped with dual-zone temperature controllers, the system allows for independent regulation of the top and bottom heating platens. With 30 programmable segments and an accuracy of ±1°C, operators can execute complex thermal profiles tailored to the specific glass transition or melting points of advanced polymers and bonding agents.
• High-Performance Chromium Steel Platens: The heating surfaces are constructed from specialized Cr steel, selected for its exceptional thermal conductivity and resistance to deformation under high pressure. This ensures that the applied force remains uniform across the entire 100mm to 400mm surface area, preventing localized stress concentrations.
• Advanced Internal Water Cooling: To facilitate rapid cycle times and protect the hydraulic system, the platens feature built-in water cooling jackets. This design allows for accelerated cooling phases once bonding is complete, significantly increasing throughput in industrial applications while maintaining a safe exterior temperature.
• Dual-Mode Pressure Control: The system features a modified electric hydraulic press that can be adjusted via a digital pressure gauge with an accuracy of ±0.01 MPa. This allows for fine-tuned force application during both the heating phase and the subsequent cold-state stabilization, accommodating the contraction and expansion cycles of various materials.
• Versatile Heating Options: Beyond standard electric heating elements, the system can be adapted to utilize steam or hot oil heating for specific industrial requirements. This flexibility ensures that the equipment can be integrated into existing facility infrastructures without extensive modifications.

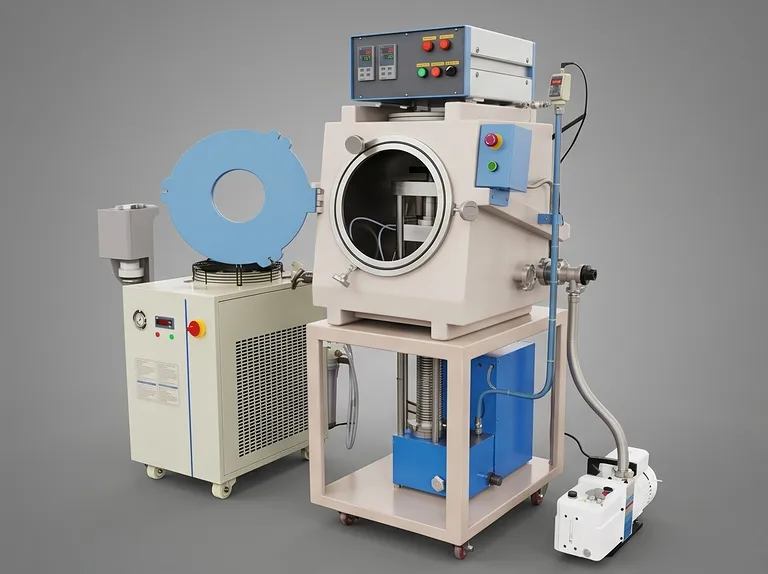

• Optical Observation Port: The vacuum chamber is equipped with a 150mm diameter quartz glass window mounted on a hinged door. This allows for real-time monitoring of the bonding process, which is essential for troubleshooting new material formulations and ensuring precise alignment during wafer bonding.
• Robust Safety and Protective Systems: Built-in over-temperature protection, thermocouple failure detection, and an automatic pressure shut-off mechanism protect both the operator and the equipment. These safety layers ensure that even in the event of a power surge or component failure, the system fails-safe to prevent damage to expensive substrates.

Applications

Technical Specifications

Why Choose This Product

• Uncompromising Build Quality: Every component, from the SS304 vacuum chamber to the high-tensile Cr steel platens, is selected for industrial durability. This equipment is designed to withstand continuous operation at 500°C while maintaining structural alignment and vacuum integrity.
• Advanced Process Control: Unlike standard presses, this unit offers the granular control required for modern material science. The ability to program 30 distinct segments for heat and synchronize them with precise hydraulic pressure allows for the development of highly optimized bonding protocols.
• Operational Efficiency: The integration of dual-mode heating and rapid water-cooling jackets minimizes downtime between batches. This throughput advantage makes the system not only an R&D powerhouse but also a viable tool for small-to-medium scale specialized production.
• Full Customization Capabilities: We recognize that unique materials require unique solutions. Our engineering team can customize platen sizes, pressure ranges, and software interfaces to meet the specific demands of your processing environment, ensuring the equipment fits your workflow perfectly.
• Comprehensive Certification and Support: As a CE-certified system, this furnace meets rigorous safety and performance standards. Backed by responsive technical support and a wealth of thermal processing expertise, we ensure your investment remains productive for years to come.

For a detailed quotation or to discuss a customized thermal processing solution tailored to your specific material requirements, please contact our technical sales team today.
