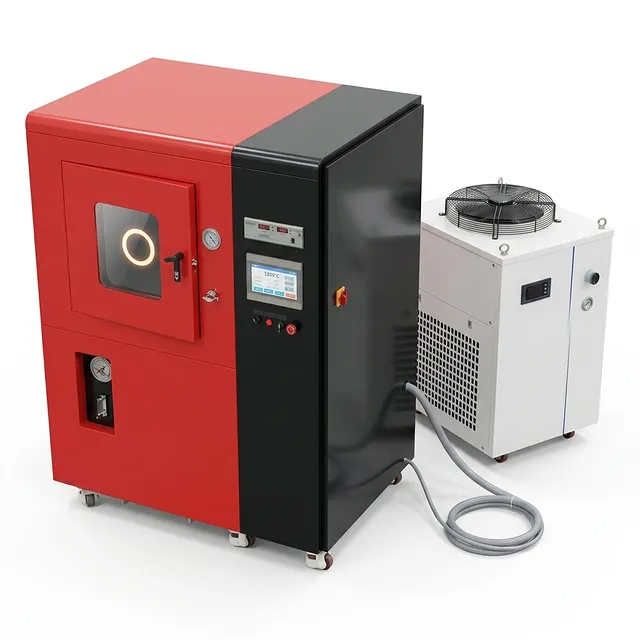

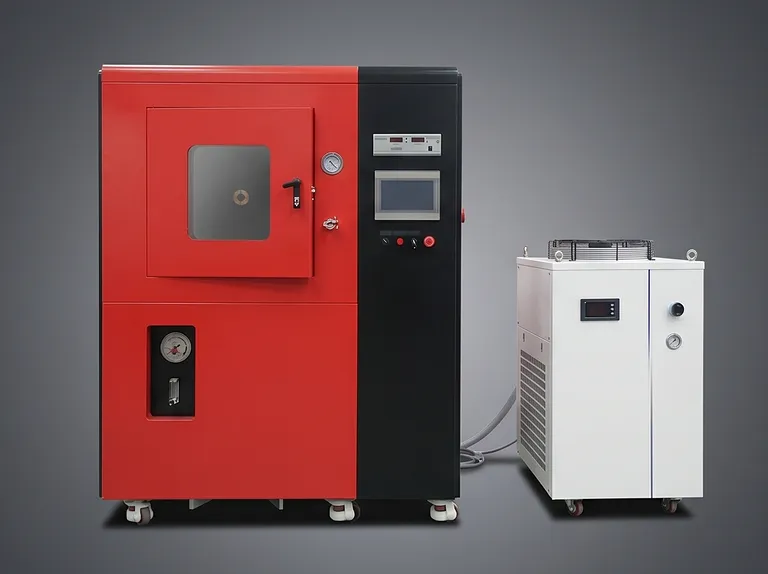

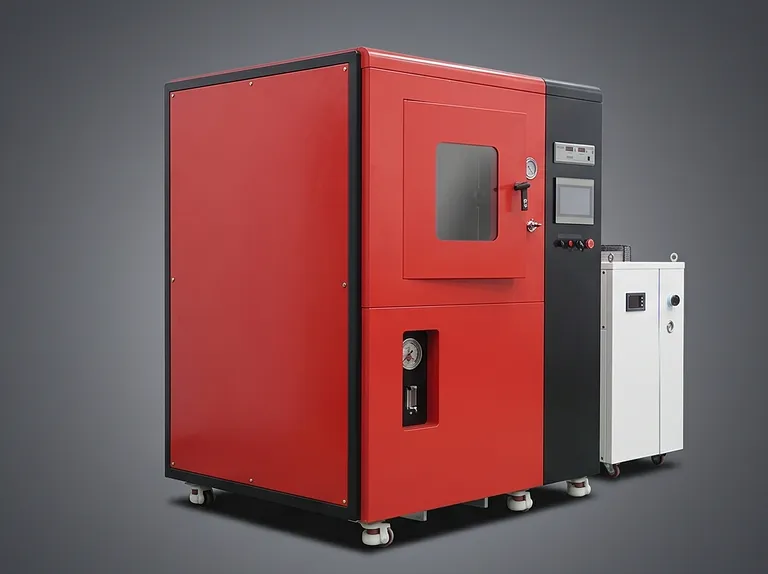

DCS DC Rapid Vacuum Hot Press Sintering Furnace

Product Overview

The DCS DC rapid vacuum hot press sintering furnace revolutionizes material densification by integrating high-power direct current heating with servo-electric uniaxial pressing in a controlled vacuum or inert gas environment. Unlike conventional sintering methods that require hours or even days, this system achieves full densification in as little as 10–20 minutes, thanks to its extraordinary heating rate of up to 1000°C/min. The direct current passes through the graphite die and, depending on the material, through the sample itself, enabling efficient volumetric heating and promoting rapid atomic diffusion. This results in near-theoretical density while preserving the fine grain structure essential for advanced nanomaterials, gradient materials, and hard-to-sinter ceramics.

Designed for both research and production environments, this furnace processes a wide array of materials including metals (Fe, Cu, Al, Ni, Ti), oxides (Al₂O₃, ZrO₂, MgO), carbides (SiC, B₄C, WC), nitrides (Si₃N₄, TiN, AlN), borides (TiB₂, ZrB₂), and cermets (WC/Co, Al₂O₃/Ni). Its versatility makes it indispensable for laboratories engaged in developing next-generation materials for aerospace, energy, biomedical, and electronics industries.

The system’s robust engineering ensures consistent performance under extreme conditions. Key components are designed for high thermal and mechanical loads, with integrated safety interlocks and diagnostic feedback that guarantee safe, uninterrupted operation. This unit is backed by a track record of reliability in demanding academic and industrial settings, making it a trusted investment for materials research.

Key Features

• Ultra-Fast Sintering: With heating rates up to 1000°C/min, this furnace completes the sintering process in just 10–20 minutes, compared to hours in conventional systems. The rapid cycle dramatically accelerates material development timelines and boosts production throughput while reducing energy consumption per part.
• Cost-Effective DC Power: Utilizing a high-current DC power supply (0–4000 A, 0–12 V) eliminates the need for expensive pulsed power systems. This design not only lowers initial capital expenditure but also simplifies the electrical infrastructure, providing a more accessible route to state-of-the-art rapid sintering.
• Precision Parameter Control: Every critical parameter—temperature, pressure, and atmosphere—is governed by a high-accuracy PID controller and a servo-electric press. Temperature is monitored by advanced pyrometers, and pressure is maintained within ±100 N, ensuring unrivaled reproducibility and consistent part quality from run to run.
• Intuitive Touchscreen HMI: The large, high-resolution LCD touchscreen displays real-time process data and allows operators to create, store, and execute complex multi-step recipes. A simple one-button start initiates fully automated cycles, minimizing the need for skilled intervention and reducing the risk of human error.
• Low-Temperature Sintering: By applying pressure during heating, full densification can be achieved at temperatures significantly lower than those required for pressureless sintering. Short holding times suppress grain growth, preserving nanoscale microstructures that deliver superior mechanical, magnetic, or thermoelectric properties.
• Ultra-High Vacuum Capability: The system achieves a base vacuum of 5 Pa as standard, with an optional upgrade to 5.0×10⁻³ Pa. This clean, oxygen-free environment prevents contamination and oxidation, enabling the processing of highly sensitive materials such as titanium alloys and reactive ceramics.
• Controlled Atmosphere Processing: Beyond vacuum operation, the furnace supports backfilling with high-purity nitrogen (≥99.99%) at pressures up to 0.03 MPa. This inert atmosphere further broadens the material compatibility and allows for tailored gas chemistries for specific reactions, such as nitriding.
• Servo-Electric Pressing Mechanism: The 50 kN servo-electric drive provides smooth, precise linear motion with exceptional force control. Unlike hydraulic systems, it requires no pumps or oil, eliminating contamination risks and offering maintenance-free operation with high dynamic response.
• Robust Water-Cooled Design: A reliable closed-loop water cooling system (0.2–0.4 MPa, 3–4 m³/h) maintains stable temperatures in the electrodes and chamber walls even during prolonged high-power operation, protecting critical components and ensuring long-term reliability.
• Wide Material Compatibility: Thanks to its flexible parameter range, this furnace handles a vast spectrum of materials—from refractory metals and ceramics to cermets and composites. It is a universal tool for materials scientists exploring novel compositions and processing routes.

Applications

The versatility of this rapid hot press sintering system is demonstrated across numerous materials and industries:

Technical Specifications

Why Choose This Product

• Industry-Leading Speed: Up to 1000°C/min heating rate and 10–20 minute cycles dramatically accelerate R&D timelines and production throughput, giving you a competitive edge.
• Uncompromised Precision: The closed-loop servo-electric pressure system (±100 N) and advanced PID temperature control ensure every part meets exact specifications, run after run.
• Lower Total Cost of Ownership: By eliminating costly pulsed power supplies and utilizing robust DC technology, this furnace provides premium performance with reduced capital and maintenance expenses.
• Engineered for Longevity: Built with high-grade vacuum components, durable electrodes, and an effective water-cooling system, it withstands thousands of high-temperature cycles with minimal downtime.
• Customization and Support: We offer configuration options such as higher vacuum levels, customized tooling, and specific atmosphere setups to match your unique process requirements.

Contact us today to discuss your sintering needs and request a quotation.
