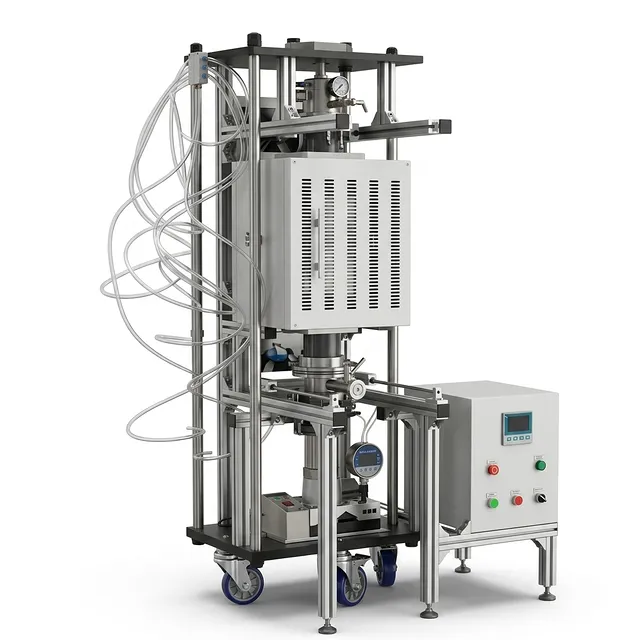

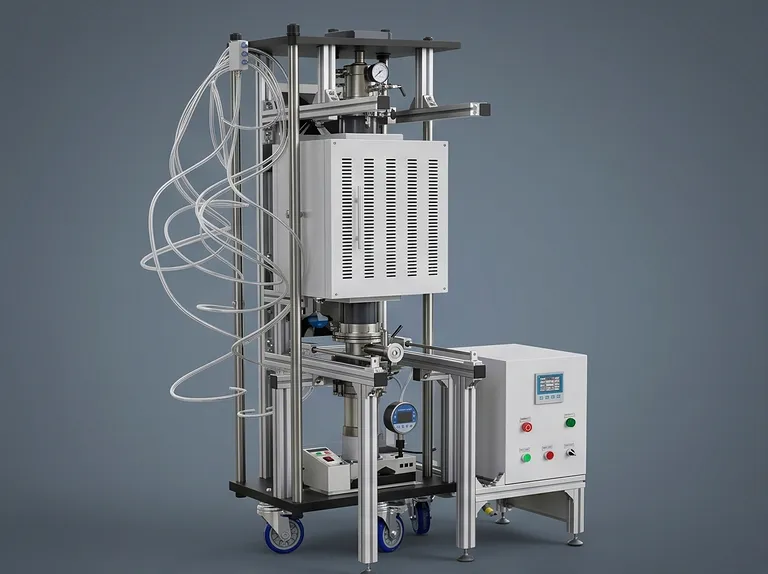

Industrial High Temperature Vacuum Hot Press Furnace and Heated Vacuum Press Machine for Material Science Sintering

Product Overview

This high-performance thermal processing system represents a sophisticated integration of vacuum atmosphere control, precision hot-press forming, and high-temperature sintering technologies. Designed specifically for the rigorous demands of material science research and industrial R&D, the equipment provides a controlled environment where heat and uniaxial mechanical pressure work in tandem to consolidate materials. By applying simultaneous mechanical force and thermal energy, the unit facilitates the production of dense, high-purity components from powders and preforms that would otherwise be difficult to sinter using traditional pressureless methods.

The primary value proposition of this system lies in its ability to achieve near-theoretical density in advanced materials such as functional ceramics, dry powder metallurgy alloys, and high-temperature composites. The equipment is extensively utilized for the development of silicon carbide, silicon nitride, and various refractory metal alloys. By effectively reducing the sintering activation energy through mechanical coupling, this unit allows for lower processing temperatures, which inhibits unwanted grain growth and results in superior mechanical properties.

Engineered for long-term reliability in demanding laboratory and pilot-production environments, the system features a robust stainless steel construction and a sophisticated automated control interface. The vertical split furnace design ensures easy access for sample loading while maintaining high-vacuum integrity. With its ability to handle both vacuum and inert atmosphere processing, this equipment offers researchers and production engineers the flexibility required to innovate in the fields of aerospace, electronics, and advanced structural materials.

Key Features

• Integrated Thermal-Mechanical Processing: This system combines a vertical split heating furnace with a precision hydraulic press, allowing for simultaneous application of temperatures up to 1150°C and uniaxial pressure up to 30MPa to maximize material densification.
• Precision Hydraulic Control System: The unit features an electric drive hydraulic system with a standby manual drive, providing stable pressure regulation within ≤1MPa/10min to ensure uniform compaction across the entire sintering cycle.
• Advanced Vacuum Integrity: Utilizing a vacuum corrugated pipe for mechanical movement under vacuum conditions, the system maintains a high-purity environment that prevents oxidation and contamination of sensitive materials like graphite and reactive alloys.
• Intelligent PID Temperature Regulation: The furnace is equipped with a sophisticated touch-screen controller that supports up to 15 programmable sintering curves, enabling precise management of heating rates, hold times, and cooling profiles.
• Robust Stainless Steel Construction: The furnace body is constructed from high-grade stainless steel with a brushed surface finish, ensuring structural rigidity under vacuum loading while maintaining a professional industrial aesthetic.
• Dual-Atmosphere Versatility: The equipment is designed to operate under high vacuum (up to 10-4 torr with optional turbo pump) or within an inert gas atmosphere via integrated flowmeters, providing total control over the chemical environment.
• Enhanced Safety and Monitoring: Real-time graphical monitoring of the sintering process and fully automated program control ensure operational safety and process repeatability, which are critical for ISO-certified research environments.
• Efficient Thermal Management: The furnace utilizes high-purity Ni-Cr-Al resistance wire and superior insulation materials to minimize heat loss, while water-cooled flanges protect seals and maintain outer-shell safety during high-temperature runs.

Applications

Technical Specifications

This table outlines the performance metrics and construction details for the TU-VH03 series. These specifications represent the standard configuration, though modular options for tubes and pumps are available to meet specific research requirements.

Why Choose This Product

• Precision-Engineered Consolidation: The TU-VH03 provides the exact thermal-mechanical coupling required to eliminate internal pores and achieve near-theoretical density in advanced material samples.
• Superior Build Quality: Constructed with all-stainless steel bodies and precision-machined graphite components, this system is built to withstand the rigorous cycling of industrial and academic research laboratories.
• Flexible and Modular Design: With options for different tube materials (Quartz, Alumina, Nickel Alloy) and various die sizes, the equipment can be tailored to match the chemical and physical requirements of your specific material sets.
• Proven Operational Stability: Our advanced control software provides real-time monitoring and a user-friendly interface, ensuring that complex sintering profiles are executed with consistent, repeatable accuracy.
• Comprehensive Technical Support: As a leading provider of high-temperature solutions, we offer deep customization services and responsive engineering support to help you build an exclusive thermal processing solution.

To learn more about how this system can enhance your material processing capabilities or to request a detailed quotation for a custom configuration, please contact our technical sales team today.
