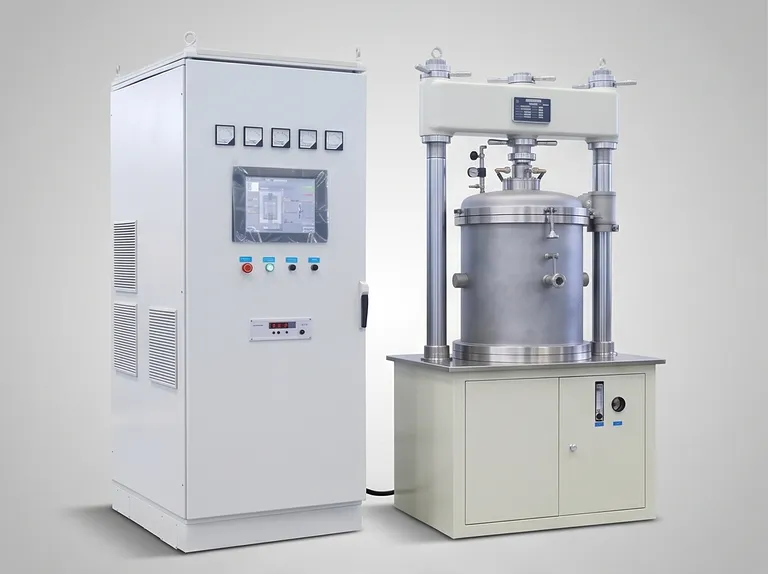

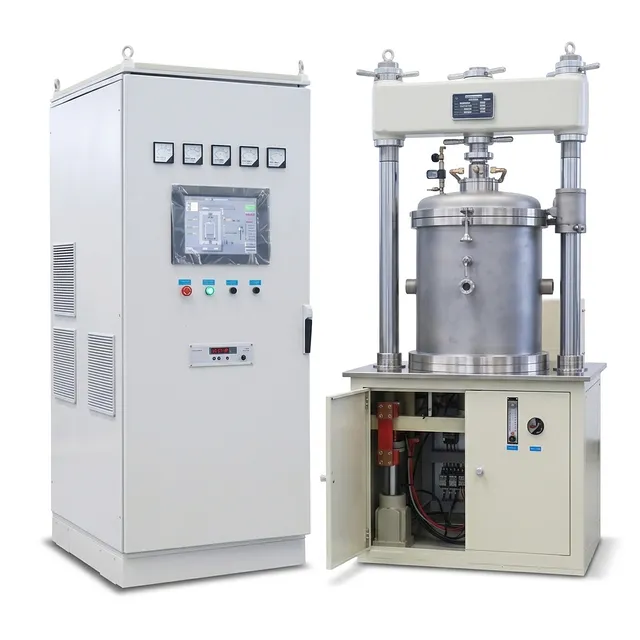

Industrial Vacuum Hot Press Furnace Machine and High Temperature Heated Vacuum Press for Advanced Material Sintering

Product Overview

This high-performance industrial thermal processing system integrates advanced high-temperature heating with uniaxial mechanical pressure within a strictly controlled vacuum or atmospheric environment. Designed as a complete solution for material science and industrial R&D, this equipment enables the consolidation of powder compacts and preforms into high-density solid bodies. By applying heat and pressure simultaneously, the system facilitates particle rearrangement, plastic flow, and diffusion bonding, effectively eliminating internal pores and voids to achieve near-theoretical density in finished components. This process is essential for producing materials with superior mechanical, electronic, and thermal properties that cannot be achieved through pressureless sintering alone.

The system is engineered for exceptional versatility, making it an indispensable tool for sectors ranging from aerospace and defense to semiconductor manufacturing and specialty glass production. Whether performing crystal growth, thin-film deposition, or the purification of refractory metals, the equipment maintains a pristine processing environment. Its ability to operate under high vacuum or specialized protective atmospheres (such as inert or reducing gases) allows for the synthesis of complex alloys and advanced technical ceramics with precise microstructures. The system supports various heating technologies, including graphite, molybdenum, and induction heating, ensuring compatibility with a wide array of high-melting-point materials.

Built for demanding industrial environments, this unit prioritizes reliability and repeatable performance. The robust double-shell structure, reinforced by a stable hydraulic press system, ensures that the equipment can handle continuous high-pressure cycles without compromising structural integrity. Advanced PLC-based control systems provide operators with the confidence to execute complex thermal profiles with high precision. This focus on engineering excellence and durability positions the equipment as a premium investment for laboratories and manufacturing facilities that require consistent, high-quality results in their thermal processing operations.

Key Features

• Double-Shell Water-Cooled Construction: The furnace chamber is designed with a double-layer SUS304 stainless steel structure featuring an integrated water jacket. This engineering choice ensures that the inner shell can house extreme temperatures while the outer housing remains safe to the touch, maintaining a surface temperature below 60°C during peak operation.
• High-Precision Hydraulic Pressing: Featuring a stable double-column support structure, the hydraulic system provides controlled uniaxial pressure ranging from 5 to 800 tons. The system supports both manual and automated pressure regulation, ensuring uniform force application across the material throughout the sintering cycle.
• Versatile Heating Element Configurations: To accommodate different material sensitivities and temperature requirements, the system can be fitted with graphite tube heaters or molybdenum wire elements. These configurations allow for temperatures reaching up to 2200°C in vacuum or up to 2800°C in specialized protective atmospheres.
• Multi-Stage Vacuum Management: The vacuum system is comprised of high-efficiency mechanical and oil diffusion pumps, enabling rapid evacuation to high-vacuum levels. The inclusion of high-vacuum baffle valves and PLC-integrated switching ensures a clean, oxygen-free environment for sensitive material processing.
• Advanced Thermal Insulation and Shielding: Utilizing high-purity graphite felt, carbon felt, or metal reflective screens, the insulation layer is designed for low thermal conductivity. This unique structural design reduces energy consumption and minimizes vacuuming time by preventing moisture absorption and outgassing.
• Integrated PLC Control Architecture: The electrical control system features a humanized design with a graphic simulation interface. Imported brand programmable controllers manage both temperature and pressure cycles, allowing for fully automated sintering processes that ensure repeatable high-quality results.
• Comprehensive Safety and Alarm Systems: The system includes a multi-tiered safety network with sound and light alarms for water-cut off, over-temperature, and over-current scenarios. It also features automatic thermocouple switching and over-temperature protection to safeguard both the operator and the equipment.
• Flexible Charging and Discharging Designs: The equipment is available in multiple configurations, including vertical top-loading, side-loading, and one-way or two-way pressurization models. This modularity allows the furnace to be customized to specific laboratory workflows or industrial plant conditions.
• Dual-Purpose Sintering Capability: Beyond hot pressing, this versatile unit can also be utilized as a standard high-vacuum or atmosphere sintering furnace, providing excellent value and flexibility for multi-disciplinary research and production facilities.

Applications

Technical Specifications

Why Choose This Product

• Engineered for Precision: Every system is built with high-rigidity frames and precision-aligned hydraulic cylinders to ensure perfectly uniaxial pressure application, which is critical for preventing material deformation during high-temperature sintering.
• Superior Build Quality: We utilize premium SUS304 stainless steel and high-grade insulation materials to guarantee a long operational lifespan and minimize outgassing, ensuring your vacuum levels remain stable and your samples remain uncontaminated.
• High Operational Efficiency: The integration of rapid-cooling water jackets and high-speed gas quench capabilities significantly shortens cycle times, increasing your facility's throughput and reducing overall energy consumption per batch.
• Extensive Customization Options: Beyond standard specifications, we offer deep custom tailoring of both hardware and software, allowing you to choose specific loading methods, heating zones, and specialized control algorithms to fit your unique R&D goals.
• Proven Reliability and Support: Our equipment is backed by rigorous testing and a specialized engineering team that provides predictive maintenance insights and responsive technical support to ensure your laboratory operations never face unexpected downtime.

Please contact our technical sales team today to discuss your specific material requirements or to request a customized quote for your next thermal processing solution.
