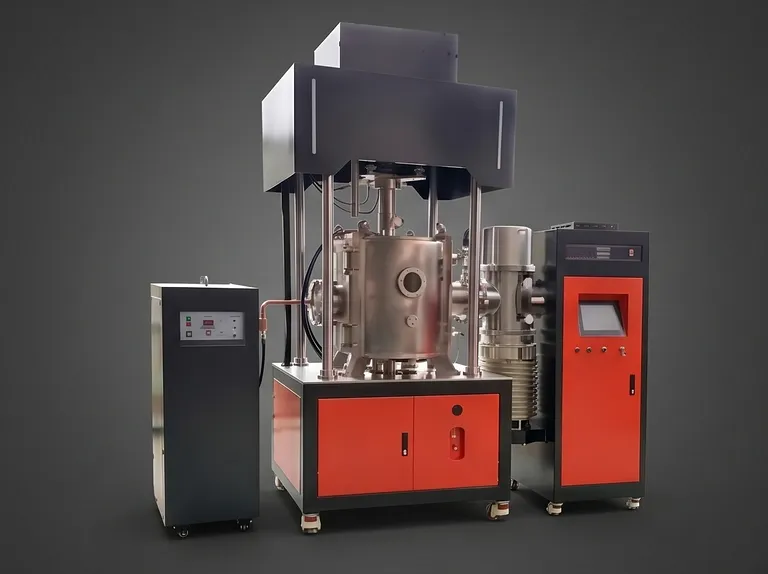

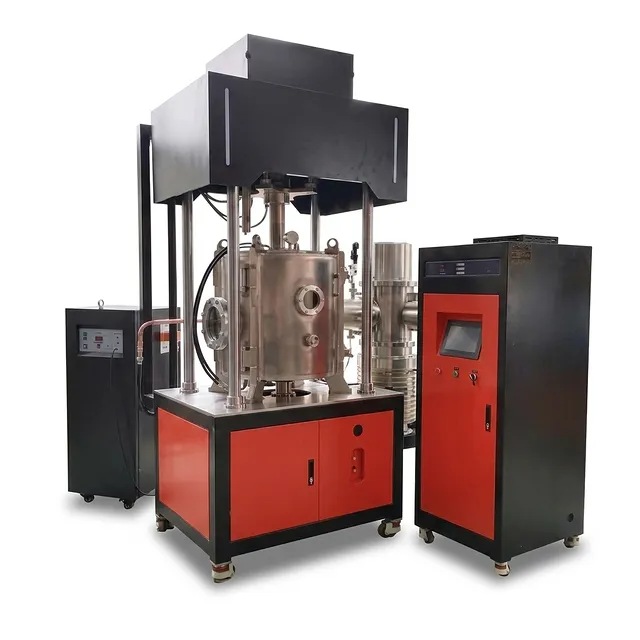

Vacuum Induction Hot Pressing Furnace with Bi Directional Pressing for Advanced Ceramic Sintering

Product Overview

This high-performance thermal processing system represents the pinnacle of material synthesis technology, combining rapid induction heating, a high-vacuum operating environment, and dual-action hydraulic consolidation. Designed to meet the stringent demands of modern materials science, the equipment enables simultaneous application of high temperature and mechanical force to facilitate the rapid densification of advanced powders. By applying physical pressure from both the upper and lower plungers, this unit ensures exceptional structural homogeneity and eliminates the internal density gradients commonly found in conventional sintering systems. It provides an all-in-one solution for operations looking to compress cycle times while maintaining absolute control over the physical and mechanical properties of their final components.

Engineered primarily for industrial R&D laboratories, high-tech manufacturing, and advanced ceramics facilities, this system is optimized for fabricating high-performance technical ceramics, metal matrix composites, cermets, and specialized refractory materials. Whether utilized in the development of cutting-edge aerospace armor, wear-resistant tooling, or solid-state electrolyte materials, the system provides the highly controlled conditions required for diffusion bonding and vacuum hot pressing. The integration of a high-efficiency induction power supply allows operators to achieve extreme heating rates, making it an invaluable tool for fast-sintering experiments and pilot-scale industrial production where time-to-market and sample throughput are critical parameters.

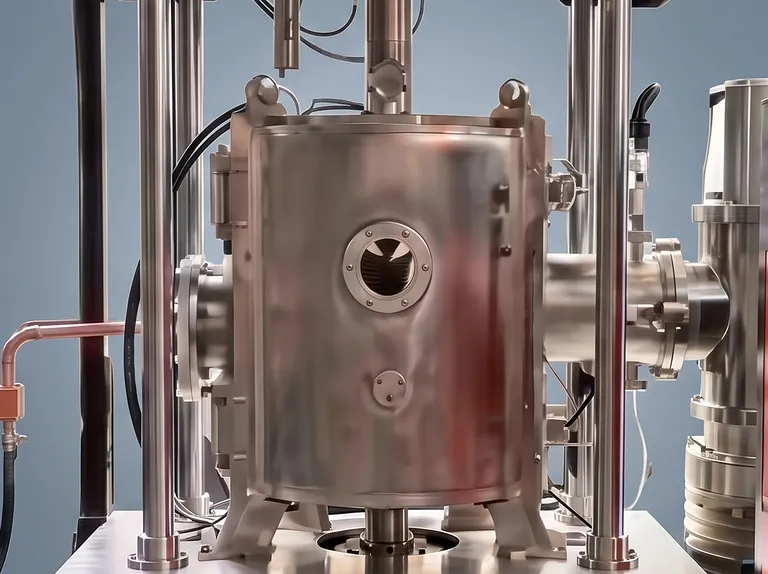

Built for demanding continuous-use environments, this equipment features robust structural engineering, premium components, and multi-layered safety interlocks to ensure maximum operational uptime. The heavy-duty structural frame is engineered to withstand high hydraulic loads without deflection, guaranteeing perfect alignment of the pressing dies over thousands of cycles. The double-walled vacuum chamber is constructed from high-grade stainless steel with continuous water cooling to prevent thermal distortion and ensure user safety during high-temperature cycles. With its integrated design, intuitive control interface, and dependable mechanical execution, the system serves as a highly reliable asset that consistently delivers reproducible, high-density material structures for critical engineering applications.

Key Features

• Bi-Directional Pressing System: The advanced hydraulic system utilizes double-acting cylinders to apply force simultaneously from both the top and bottom plungers, ensuring uniform pressure distribution throughout the powder compact and minimizing density gradients for structurally flawless components.
• Ultra-Fast Induction Heating: Driven by a state-of-the-art induction power supply, this system achieves rapid heating rates of up to 1000°C/min, dramatically reducing overall thermal processing times and preventing unwanted grain growth during the critical sintering stages.
• Integrated Debinding and Molding: The unique multi-functional chamber design allows for seamless integration of debinding, sintering, and molding processes in a single thermal cycle, saving precious floor space and eliminating the risk of contamination from handling delicate green bodies.
• High-Vacuum Sintering Environment: Equipped with a high-capacity vacuum system capable of reaching an ultimate pressure of 6.7×10^-3 Pa, the furnace effectively prevents oxidation, removes volatile impurities, and ensures high-purity material processing for sensitive composites.
• Advanced PLC and Touch Screen Control: An intuitive, automated control interface allows operators to program multi-step heating and pressing profiles, reducing human error and ensuring highly repeatable execution of complex material recipes.
• Real-Time Data Logging and Export: Continuous tracking of temperature, hydraulic pressure, displacement, and vacuum levels provides comprehensive process transparency, with all data queryable on-screen and fully downloadable via USB for strict quality control and research analysis.
• High-Precision Displacement Control: A built-in linear encoder measures compression displacement up to 300 mm with micrometer-level precision, enabling real-time monitoring of powder shrinkage, compaction rates, and phase transitions during the hot-pressing cycle.
• Integrated Closed-Loop Water Chiller: The unit features a built-in water cooling system that eliminates the complexity, footprint, and utility costs associated with installing external municipal water hookups or large-scale facility cooling towers.
• Multi-Level Security and Safety Interlocks: Integrated safety systems monitor vacuum limits, cooling water flow rates, hydraulic overpressure, and over-temperature thresholds, automatically executing safe-shutdown protocols to protect both the operator and the valuable workload.

Applications

Technical Specifications

Why Choose This Product

• Engineered for Precision Consolidation: The bi-directional pressing mechanism guarantees highly consistent densities throughout the entire volume of your compacts, reducing internal stresses and preventing warp or structural weakness in high-aspect-ratio components.
• Extreme Process Efficiency: By leveraging rapid induction heating, this system compresses thermal cycles from hours to minutes. This dramatically increases sample throughput in active R&D settings and lowers overall energy consumption per cycle in production environments.
• Seamless Facility Integration: The compact, integrated footprint with a built-in water chiller eliminates the extensive plumbing, high installation costs, and space requirements associated with traditional laboratory hot presses, allowing for quick deployment.
• Robust Data Integrity for Compliance: With comprehensive real-time data tracking and export capabilities, this system makes it easy to satisfy rigorous industrial quality standards and scientific documentation requirements, providing full process traceability.
• Customizable Tooling and Support: We provide complete customization options for pressing dies, graphite tooling, and gas-purging configurations, backed by our team of experienced thermal processing engineers to support your specific materials research goals.

For more information on how this advanced system can optimize your high-temperature material consolidation processes, contact our technical sales team today to request a custom configuration and quotation.
