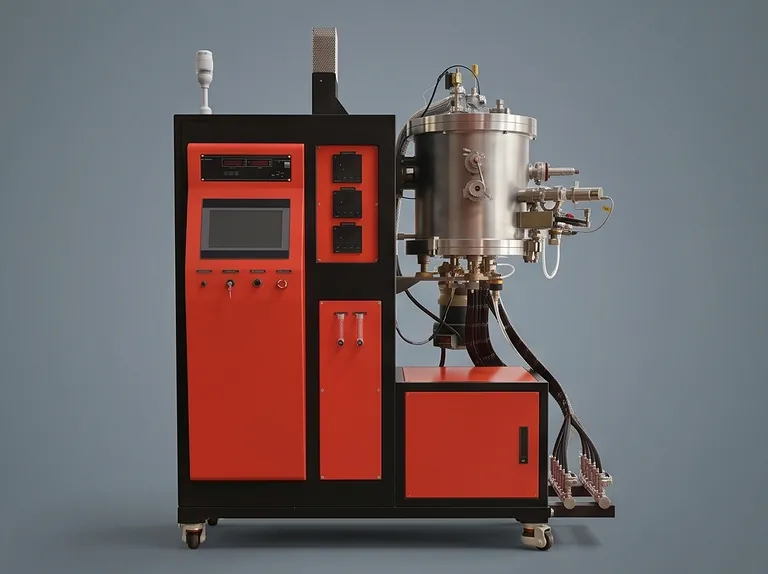

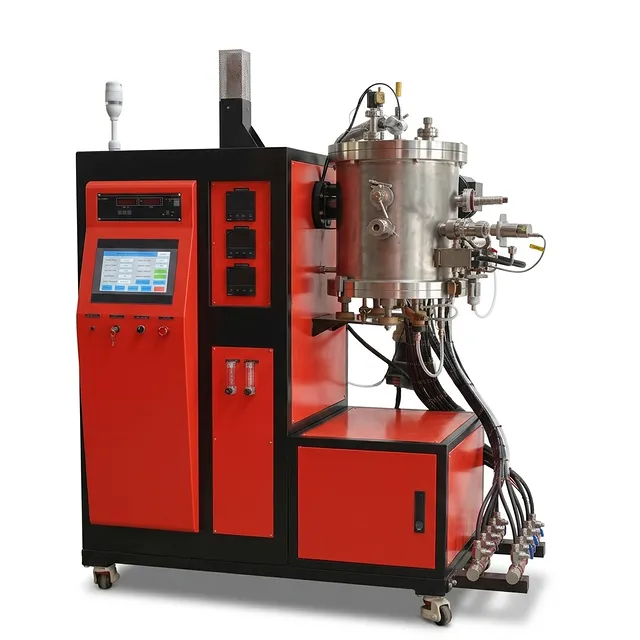

2300°C Mini Vacuum Sintering Furnace with Ignition Device

Product Overview

This advanced mini vacuum sintering furnace is engineered for high-temperature material processing in laboratory and pilot-scale environments. Its compact bottom-loading design integrates graphite heating elements to achieve exceptional temperature uniformity up to 2300°C, making it ideal for research institutions and industrial R&D labs that demand precise thermal control. The system supports both vacuum and protective atmosphere operation, including hydrogen, enabling a wide range of sintering and heat treatment applications.

The unit is particularly suited for sintering refractory metals, advanced ceramics, and optical materials. With the capability to maintain an ultra-high vacuum of 6.67×10⁻³ Pa and introduce inert gases or hydrogen, it ensures contamination-free processing. The integrated ignition device safely handles hydrogen tail gas, aligning with strict laboratory safety protocols. Whether you are developing new materials, conducting failure analysis, or performing small-batch production, this system delivers consistent and reliable results.

Built for durability, the furnace features robust vacuum chamber construction and intelligent PLC control. Its touchscreen interface simplifies complex process programming, while data logging and authority management functions enhance operational oversight. Designed to withstand continuous high-temperature cycling, this unit provides years of trouble-free service, reducing downtime and maintenance costs. Backed by our global support network, the system comes with easy access to spare parts and technical expertise, ensuring uninterrupted operation.

Key Features

• Ultra-High Temperature Performance: Reaches a maximum temperature of 2300°C with a rated operating range from ambient to 2200°C. This capability enables sintering of advanced materials such as tungsten, molybdenum, and ceramic matrix composites that require extreme heat.
• Precision Temperature Control: Utilizes an advanced PID controller with both thermocouple and infrared temperature sensors, achieving ±1°C accuracy across the heating zone. This dual-measurement approach ensures reliable process repeatability and uniform material properties.
• Superior Vacuum Integrity: Achieves a cold-state ultimate vacuum level of 6.67×10⁻³ Pa after bake-out, producing a clean environment free from oxygen and moisture. The vacuum system prevents oxidation and contamination during sintering, resulting in high-quality sample output.
• Integrated Hydrogen Safety System: Equipped with an automatic ignition device for hydrogen tail gas, the unit eliminates the risk of explosive gas accumulation. This feature makes it safe for hydrogen-atmosphere sintering of metals that require a reducing environment.
• Versatile Atmosphere Control: Supports a wide range of process gases including argon, nitrogen, and hydrogen, with a filling pressure of up to 0.05 MPa. The system allows precise atmosphere regulation to tailor sintered material properties.
• Compact and Efficient Work Zone: The work zone of Φ80×80 mm (D×H) is optimized for small sample sizes, minimizing energy consumption while delivering uniform heating. This compact design is perfect for labs with limited space.
• Intuitive PLC Touchscreen HMI: The programmable logic controller with a user-friendly touchscreen interface provides real-time monitoring of temperature, vacuum, and gas flow. It allows users to create, store, and recall multi-step recipes, and includes data export via USB for traceability.
• Bottom-Loading Convenience: The bottom lift mechanism simplifies sample placement and retrieval, especially for delicate or oddly shaped parts. The design maintains vacuum seal integrity and reduces particle contamination.
• Durable Graphite Hot Zone: The graphite heating elements and insulation provide excellent thermal stability and resistance to thermal shock, ensuring long service life even under rapid heating and cooling cycles.
• Enhanced Safety Features: In addition to hydrogen ignition, the system includes over-temperature protection, vacuum loss alarm, and emergency stop functions. These safeguards protect both the operator and the equipment during unattended operation.

Applications

Technical Specifications

Why Choose This Product

• Industry-Proven Reliability: Our miniature sintering furnaces incorporate decades of thermal engineering experience. The graphite heating assembly and vacuum vessel are built to endure thousands of high-temperature cycles while maintaining vacuum integrity, minimizing downtime in critical research settings.
• Precision Manufacturing: Every furnace is assembled and tested to exacting standards, with a focus on temperature uniformity and control accuracy. The ±1°C stability, verified by dual-sensor feedback, ensures that your most demanding process requirements are met consistently over the product’s lifespan.
• Built for Safety: Safety is integral to the design. The automatic hydrogen ignition system, combined with robust vacuum interlocks and over-temperature alarms, allows confident operation even with flammable atmospheres, meeting rigorous laboratory safety requirements.
• Customization and Support: We understand that each application has unique needs. Our engineering team works with you to customize work zone sizes, gas handling configurations, and software features. From initial consultation to installation and training, we provide comprehensive support to help you achieve optimal performance.
• Investment Value: When you choose this furnace, you are investing in a premium solution that delivers low total cost of ownership. Its energy-efficient design, long-life consumables, and low maintenance needs translate to significant savings over time compared to less capable alternatives.

Contact us today to discuss your specific sintering challenges and discover how our mini vacuum sintering furnace with ignition device can accelerate your research and development.
