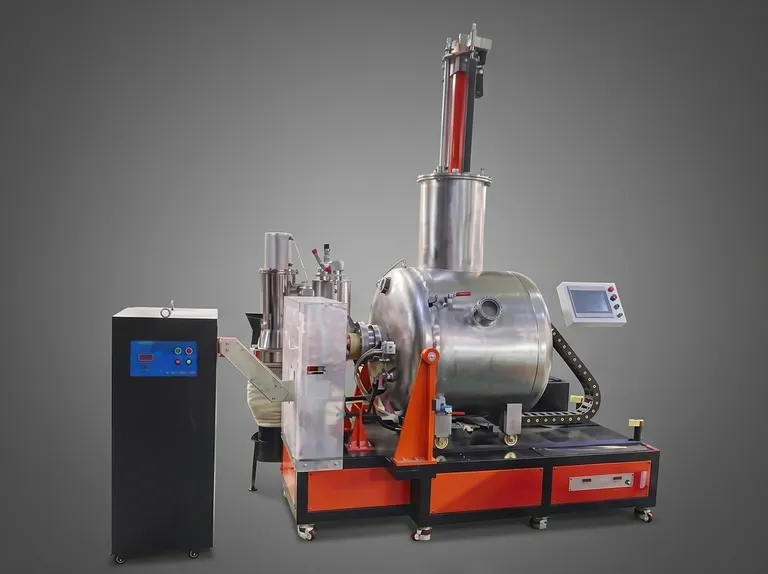

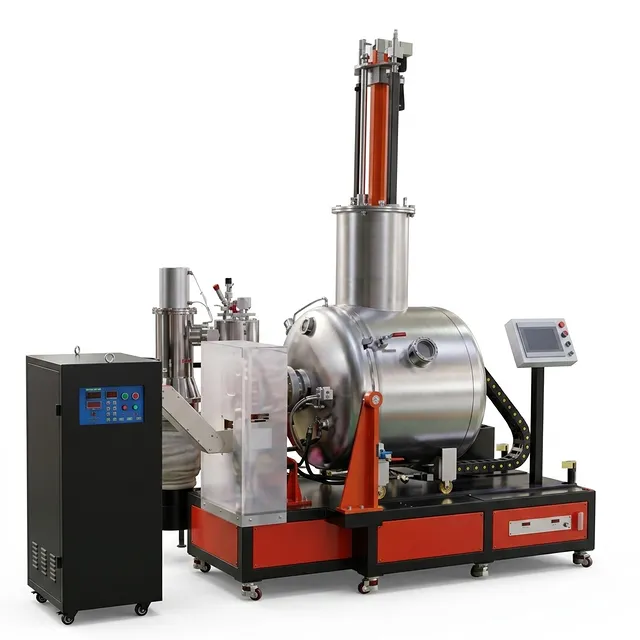

Precious Metal Purification Vacuum Distillation Furnace

Product Overview

The precious metal vacuum distillation furnace is a high-performance thermal processing system designed for the efficient separation and purification of gold, silver, copper, lead, zinc, and other non-ferrous metals. Operating under high vacuum or protective atmosphere, the unit leverages differences in metal vapor pressures to selectively evaporate and condense target elements, yielding exceptionally pure metals suitable for electronics, jewelry, and industrial applications. The vacuum environment eliminates surface oxidation, delivering bright, oxide-free outputs that seldom require secondary finishing—reducing both processing time and chemical consumption.

This equipment serves a critical role in precious metal recycling operations, mining refineries, and metallurgical R&D laboratories. It is particularly valuable for recovering high-purity metals from complex alloys, scrap materials, and mixed-metal concentrates. The ability to process up to 25 kg per batch makes it equally suitable for pilot-scale production and small-batch commercial manufacturing, bridging the gap between laboratory experimentation and full-scale industrial distillation.

Engineered for demanding continuous use, the furnace features a robust horizontal split chamber, high-capacity vacuum pumping system, and advanced computer-controlled temperature management. Every design aspect—from the diffusion-pumped vacuum system achieving 6.67×10⁻³ Pa to the water-cooled condenser maintaining ≤100°C—is optimized for repeatable, high-recovery processing. Backed by over a decade of field success, this system delivers the reliability and precision that modern material processing operations demand.

Key Features

• Ultra-High Temperature Capability: The furnace achieves a crucible temperature up to 1600°C, monitored by a tungsten-rhenium thermocouple for exceptional accuracy. This extended range enables distillation of refractory precious metals including platinum, palladium, and rhodium, while multi-zone heating ensures uniform temperature across the melt.
• Deep Vacuum Environment: A two-stage pumping system combining a mechanical pump and a diffusion pump achieves an ultimate vacuum of 6.67×10⁻³ Pa. This deep vacuum promotes rapid evaporation of volatile impurities and prevents oxidation, resulting in high metallurgical consistency and repeatable outputs.
• Advanced PLC Control with Touchscreen Interface: The integrated PLC controller provides full digital management of heating profiles, vacuum cycles, and gas purge sequences through an intuitive touchscreen. Operators can store and recall numerous recipes, monitor process variables in real time, and ensure exact cycle reproducibility—reducing operator dependency.
• Efficient Condensation System: A water-cooled condenser maintains the collection surface below 100°C, promoting rapid and complete condensation of evaporated metals. This design maximizes metal recovery rates and shortens overall process cycle time, contributing to higher throughput.
• Inert Gas Overpressure Capability: The chamber supports nitrogen or argon atmospheres up to 0.03 MPa, enabling processing of reactive metals that require a protective environment. This flexibility extends the furnace's utility beyond vacuum distillation to include controlled-atmosphere melting.
• Horizontal Split-Chamber Design: The horizontally split vessel allows straightforward access for loading and unloading crucibles, cleaning residues, and performing routine maintenance. The vacuum-rated construction ensures long-term sealing integrity, even after thousands of high-temperature cycles.
• Scalable 25 kg Crucible Capacity: With a 25 kg working capacity, this unit is sized for meaningful production volumes while retaining the controllability of a laboratory system. It is ideal for industrial pilot runs, small-batch specialty alloy production, and high-value material recovery.
• Integrated Safety Systems: Standard features include over-temperature protection, vacuum loss alarms, and safety interlocks on access panels. These safeguards protect both operators and the furnace, ensuring safe operation in 24/7 production environments.
• Rapid Inert-Gas Quenching (Optional): The system can be configured for high-pressure gas quenching, enabling rapid cooling of processed materials. This supplementary feature reduces cycle times and can modify metal microstructures when required.
• Data Logging and Process Traceability: Through the PLC, all critical process parameters—temperature, pressure, cycle times—are recorded for quality documentation. This traceability supports compliance with ISO and other quality management standards.

Applications

Technical Specifications

Why Choose This Product

• Proven Performance in Demanding Settings: This furnace has demonstrated exceptional durability in continuous industrial service, withstands thousands of high-temperature vacuum cycles with minimal maintenance. Its rugged construction and premium components ensure a long service life, providing a rapid return on investment for high-volume precious metal processors.
• Precision Engineering for Consistent Results: Advanced PID temperature control and dynamic vacuum regulation guarantee batch-to-batch repeatability. The system’s computer-controlled cycles eliminate human variability, ensuring every run meets strict purity specifications—crucial for quality-certified supply chains.
• Versatility Across a Wide Range of Metals: Unlike single-purpose refining equipment, this unit efficiently processes gold, silver, copper, lead, zinc, and even platinum group metals. The ability to switch between vacuum and protective atmospheres and to adjust temperature profiles makes it a flexible asset for diverse metallurgical operations.
• Reduced Operational Costs and Environmental Impact: By minimizing the need for chemical fluxes, acids, and additional refining steps, the vacuum distillation process lowers operational expenses and waste treatment requirements. The compact, energy-efficient design further reduces utility costs compared to traditional pyrometallurgical methods.
• Global Support and Customization Options: We work closely with each customer to configure the furnace for specific throughput, crucible material, and automation needs. Our worldwide service network offers responsive after-sales support, preventive maintenance, and rapid spare parts delivery, ensuring maximum uptime.

Discover how this vacuum distillation furnace can transform your precious metal recovery process. Contact our engineering team today to discuss your application and receive a tailored quote.
