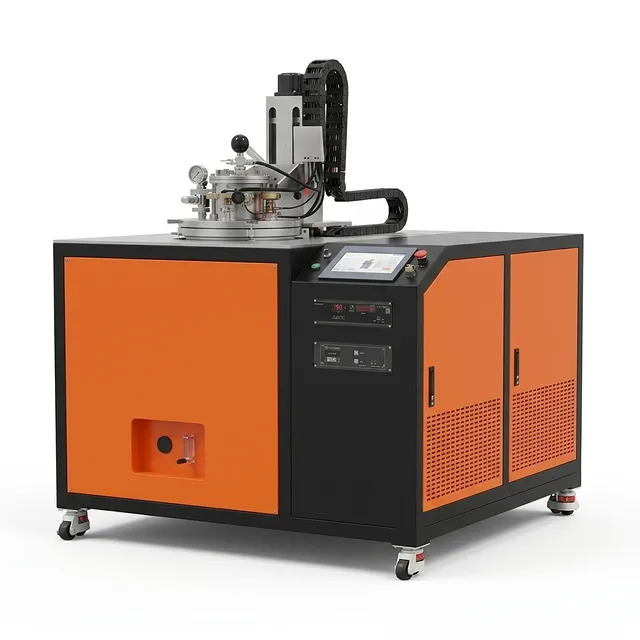

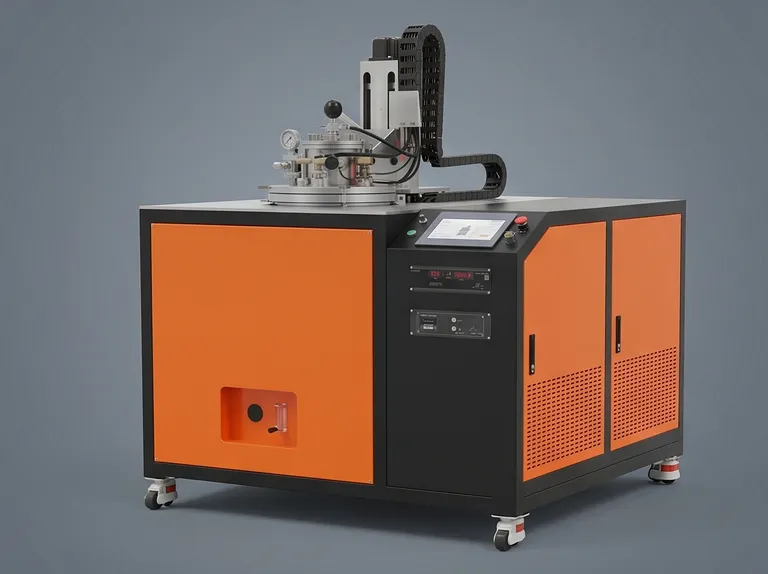

Three Zone Vacuum Sintering Furnace

Product Overview

This three-zone vacuum sintering furnace is a precision thermal processing solution designed for demanding applications in material science and industrial R&D. It integrates three independently controlled heating zones that allow precise temperature profiling, enabling gradient sintering, multi-step heat treatment, and superior uniformity across the work zone. The furnace operates under high vacuum or protective atmosphere, ensuring contamination-free processing and high-quality results for a wide range of materials.

Ideal for sintering advanced ceramics, refractory metals, and powder metallurgy components, this unit is also well-suited for optical material purification, sample testing, and small-scale production. Industries such as aerospace, electronics, medical device, and materials research rely on this equipment for critical R&D and quality control tasks that require exacting temperature control and clean environments.

Built with robust molybdenum ribbon heating elements, a high-performance vacuum system, and a PLC-based touchscreen controller, this furnace delivers consistent performance and long-term reliability. Its compact, lift-off lid design facilitates easy sample handling while maintaining thermal efficiency, making it a trusted tool for organizations that demand precision and repeatability in high-temperature processes.

Key Features

• Three Independent Heating Zones: The furnace features three individually programmable temperature zones, with the upper zone reaching up to 1400°C, the middle zone adjustable from 350°C to 1000°C, and the lower zone operating from ambient to 200°C. This configuration allows for precise vertical thermal gradients, making it ideal for processes such as debinding, pre-heating, and gradient sintering. Users can design complex multi-step recipes to optimize material properties and reduce cycle times.
• Advanced PLC Control with Touchscreen Interface: Equipped with a user-friendly touchscreen and programmable logic controller (PLC), this system enables intuitive operation, recipe storage, and real-time process monitoring. The controller supports multiple thermocouple inputs and maintains ±1°C accuracy across all zones, ensuring consistent thermal profiles and traceable data logging for quality assurance.
• Ultra-High Vacuum System: Achieving a cold-state ultimate vacuum of 6.7×10⁻⁴ Pa (after bake-out), the vacuum system effectively eliminates oxygen and other contaminants, enabling high-purity sintering of oxidation-sensitive materials. The low pressure rise rate of 4 Pa/h confirms excellent sealing and vacuum integrity, reducing maintenance and guaranteeing long-term reliability. A dry vacuum pump system and high-quality valves minimize contamination risk.
• Molybdenum Ribbon Heating Technology: The use of molybdenum ribbon elements provides rapid heating rates, excellent temperature uniformity, and durability under vacuum and inert gas conditions. These heating elements are resistant to degradation and offer consistent performance up to 1400°C, ensuring low operational costs and minimal downtime.
• Compact and Efficient Work Zone: The cylindrical work zone measures φ80×80 mm, optimized for small-batch R&D and pilot-scale processing. The lift-off lid design allows easy access for loading and unloading, while the compact furnace tube (φ400×600 mm) ensures efficient thermal baffling and temperature homogeneity.
• Flexible Atmosphere Control: In addition to high vacuum operation, the furnace supports backfilling with inert gases (such as argon or nitrogen) up to 0.03 MPa for atmosphere sintering or heat treatment. This flexibility accommodates a broad spectrum of material processing requirements, from reducing atmospheres to oxygen-free environments.
• Robust Industrial Construction: Designed for continuous 24/7 operation, the furnace features a sturdy stainless steel chamber, water-cooled seals (as required), and integrated safety interlocks. The three-phase 380V/50Hz power supply delivers stable 25 kW heating output, backed by reliable electrical components for demanding industrial use.

Applications

Technical Specifications

Why Choose This Product

• Unmatched Temperature Control: With three independent PID loops and ±1°C accuracy, this furnace delivers superior thermal uniformity across the work zone. The tungsten-rhenium thermocouples provide fast, precise feedback, ensuring that each batch meets exacting specifications, which is essential for high-value R&D and production.
• Industry-Leading Vacuum Performance: The 6.7×10⁻⁴ Pa ultimate vacuum and low leak rate surpass many competing systems, providing a cleaner processing environment that reduces oxidation and extends the life of both the furnace and your products. This performance is achieved through high-quality sealing, pumping systems, and robust chamber construction.
• Built for Continuous Operation: From the durable molybdenum ribbon heaters to the heavy-duty stainless steel chamber, every component is selected for longevity. The furnace is designed for 24/7 operation with minimal maintenance, backed by rigorous factory testing to ensure years of reliable service.
• Tailored Engineering Support: We understand that each application has unique requirements. Our team offers customization in work zone size, temperature profiles, and control software, allowing you to configure the furnace exactly to your process needs. Plus, our after-sales service provides rapid troubleshooting and spare parts availability.
• Cost-Effective Operation: The energy-efficient design and long-life heating elements minimize operating costs, while the low-maintenance vacuum system reduces service intervals, offering a lower total cost of ownership over the furnace’s service life.

Contact our sales engineers today to learn how this three-zone vacuum sintering furnace can enhance your thermal processing capabilities. Request a quote or discuss custom configuration options tailored to your specific requirements.
