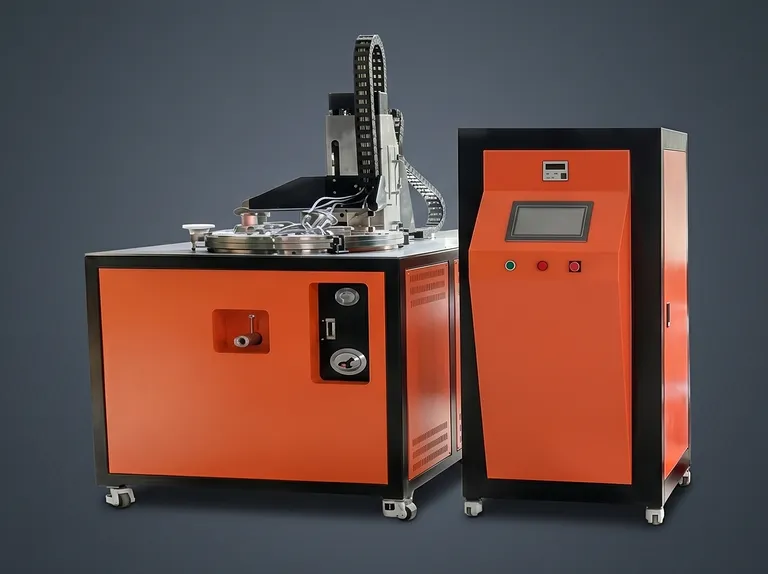

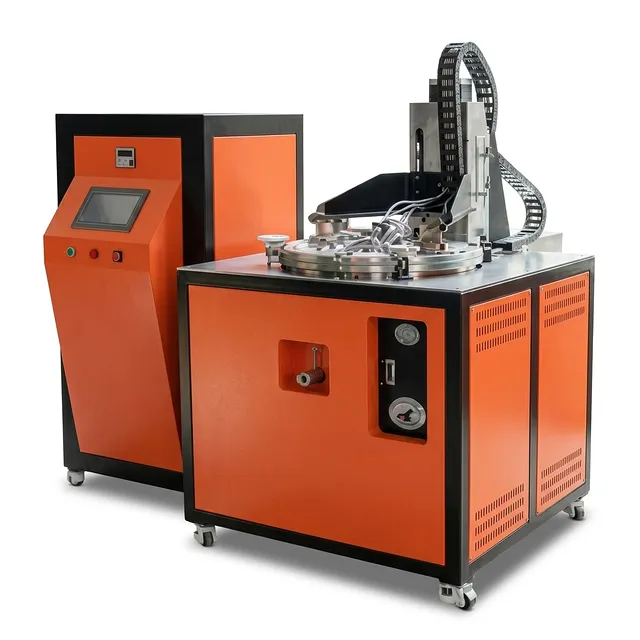

High-Temperature Vacuum Carbon Tube Sintering Furnace for Industrial Material Processing

Product Overview

This vacuum carbon tube sintering furnace is a specialized high-temperature system designed for processing a wide range of materials under vacuum or protective atmospheres. It delivers exceptional thermal uniformity and precise temperature control up to 2300°C, making it an essential tool for material science research and small-batch industrial production. The system’s robust graphite heating elements and advanced controls ensure reliable, repeatable results even in the most demanding environments.

Primary applications include sintering advanced ceramics (SiC, ZrO2, Al2O3), hard metal alloys, and composite materials that require an oxygen-free environment. The equipment is also well-suited for rare earth purification and sapphire annealing processes, supporting both academic laboratories and R&D facilities. Its compact, integrated design with lockable casters facilitates quick installation and reconfiguration, while the built-in water chiller eliminates the need for external plumbing.

Engineered for reliability, this unit undergoes rigorous testing to ensure consistent performance across all operating conditions. From rapid thermal cycling to extended dwell times, the furnace maintains exceptional temperature stability and vacuum integrity, enabling precise process control and minimizing downtime.

Key Features

• Integrated Compact Design: The furnace features a unified construction with lockable casters, enabling easy relocation and quick installation without complex site preparation. Its small footprint saves valuable lab space while maintaining full functionality.
• Flexible Door Configurations: Available in top-opening, side-opening, or lift-type designs to accommodate different loading requirements and workflow preferences, enhancing operational convenience for various sample sizes and handling methods.
• Advanced Touchscreen & PLC Control: An intuitive touchscreen interface with PLC automation provides precise management of temperature, vacuum, and gas flow. The system supports multi-step process programming with real-time monitoring and alerts for deviations.
• Recipe Storage & Recall: Store dozens of sintering profiles directly in the controller. Users can create, edit, save, and instantly recall complex recipes, reducing setup time and minimizing operator errors during repetitive production runs.
• Comprehensive Data Logging: Critical process parameters including temperature and vacuum level are recorded continuously. Data can be started/stopped on demand, queried historically, and exported for analysis or quality compliance documentation.
• High-Temperature Capability: Graphite heating elements achieve temperatures up to 2300°C, with excellent thermal stability and uniformity across the work zone, enabling sintering of refractory materials that require extreme heat.
• Integrated Water Chiller: A built-in closed-loop cooling system eliminates the need for external plumbing, simplifying installation and ensuring reliable cooling of furnace components during prolonged high-temperature operation.
• Configurable Vacuum Levels: Choose from mechanical pump systems for rough vacuum (5 Pa) or hybrid systems with diffusion or molecular pumps for high vacuum (5×10⁻³ Pa), meeting diverse process requirements from basic sintering to advanced material purification.
• Offline Process Simulation: The controller can simulate sintering profiles offline, allowing operators to verify recipe logic and timing before running actual cycles, thus protecting valuable samples and reducing trial-and-error runs.
• Safety Interlocks & Diagnostics: Comprehensive safety features include over-temperature protection, water flow monitoring, and door interlocks, ensuring operator safety and preventing equipment damage during accidental faults.

Applications

Technical Specifications

Model Variants

Custom models with non-standard temperature ranges and work zone dimensions are available upon request.

System Configuration Options

Why Choose This Product

• Proven High-Temperature Reliability: The graphite heating elements and advanced thermal design deliver consistent operation at up to 2300°C, ensuring repeatable results for critical sintering processes. Field-proven components minimize downtime and maintenance costs, backed by rigorous factory testing.
• Tailored Configurations: With a wide range of vacuum levels, power ratings, and work zone sizes, this system can be customized to meet specific process requirements. From benchtop R&D models to larger production units, we provide the exact configuration you need without compromising performance.
• Superior Build Quality: Constructed using high-grade materials and vacuum-tight welding techniques, this furnace maintains integrity under extreme conditions. Built-in diagnostics and safety interlocks protect both the operator and the sample, extending equipment lifespan.
• Advanced Automation & Data Integrity: The PLC-based control system enables complex recipe handling and comprehensive data logging, simplifying compliance with industry standards and facilitating process optimization. Reduce human error with intuitive recipe management and real-time trend monitoring.
• Responsive Technical Support: Backed by a team of experienced engineers, we offer rapid response for installation, training, and ongoing support. Custom engineering solutions are available for specialized applications, ensuring your sintering process achieves peak efficiency.

For a competitive quote or to discuss custom configurations, contact our technical sales team today.
