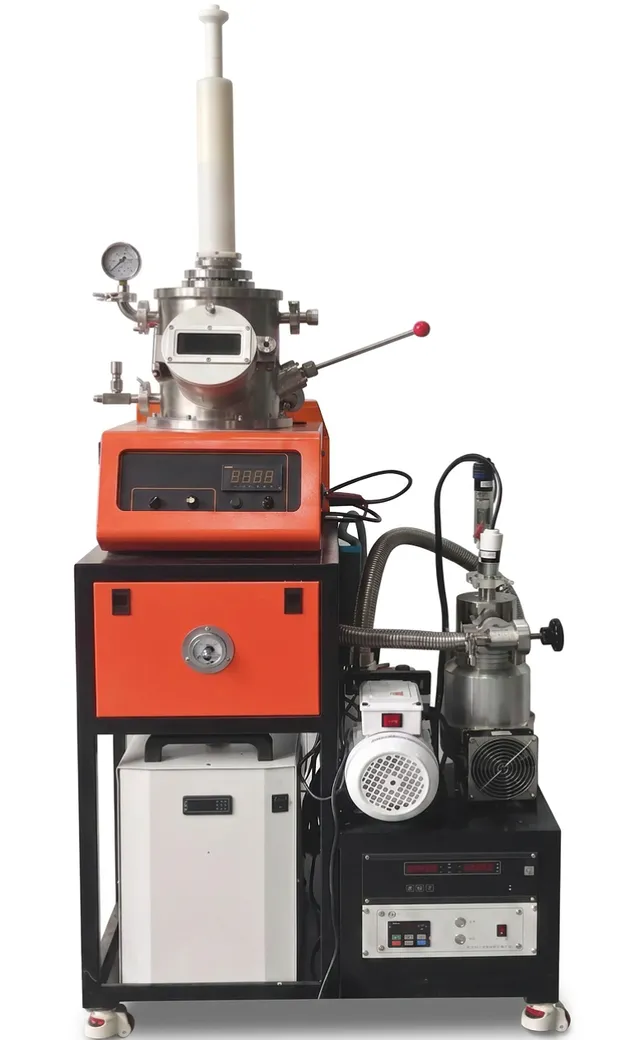

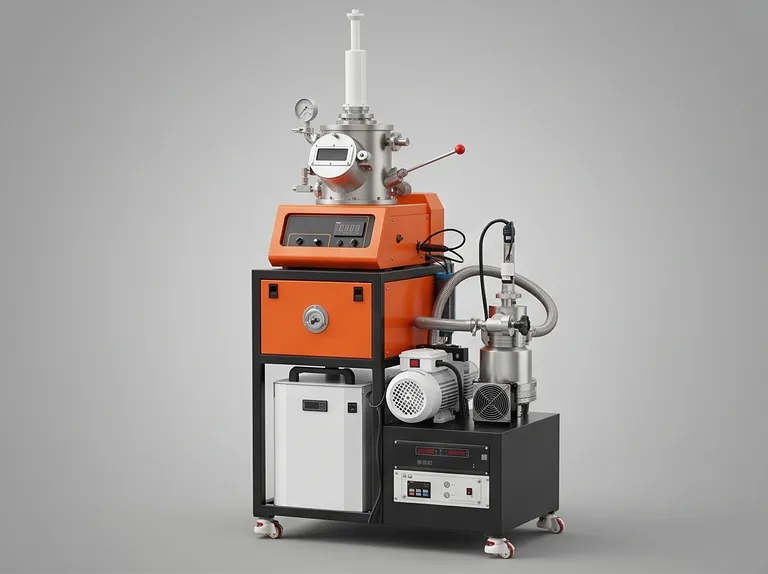

Miniature Consumable Vacuum Arc Furnace for Laboratory Metal Melting and High Temperature Material Synthesis

Product Overview

This high-precision vacuum arc melting system represents the pinnacle of compact thermal processing technology, designed to meet the rigorous demands of modern material science research and advanced B2B industrial R&D. By utilizing a controlled electric arc discharge to melt materials under vacuum or inert gas conditions, this equipment provides an ultra-clean, high-temperature environment capable of processing reactive metals, refractory alloys, and advanced carbon-based compounds. The core value proposition of this unit lies in its ability to quickly reach extreme temperatures while maintaining absolute atmospheric purity, preventing contamination from ambient air or traditional crucible materials. It is an indispensable asset for laboratories focused on pioneering new materials with strict compositional requirements.

Targeted primarily at research universities, aerospace engineering departments, metallurgy institutes, and semiconductor fabrication laboratories, this versatile thermal processor supports a wide array of experimental workflows. Whether the objective is to synthesize carbon-nanomaterials such as fullerenes and graphene or to formulate novel high-entropy alloys, this system delivers the precision and performance necessary to achieve consistent, high-purity results. Its integrated, compact configuration allows it to be easily integrated into existing laboratory layouts, providing a high-power metallurgical workstation without the massive space requirements of traditional industrial arc furnaces.

Reliability and safety are engineered into every aspect of this thermal processing unit. Built with premium materials, including a double-walled stainless steel vacuum chamber, the system ensures that high-power electrical arcs are safely contained. The advanced water-cooling system continuously dissipates thermal energy, ensuring the outer surface of the furnace remains safe to touch even during prolonged high-temperature operations. B2B procurement teams and research directors can invest in this system with complete confidence, knowing that it complies with rigorous engineering standards and is designed to deliver repeatable, drift-free performance over thousands of heating cycles.

Key Features

• Extreme Temperature Output: The electric arc generation system delivers intense localized heat, allowing the furnace to effortlessly process materials with melting points between 1000°C and 3000°C. This wide operating range enables research into refractory metals and the synthesis of advanced carbon nanostructures, providing scientists with unmatched experimental flexibility.
• Servo-Driven Automated Electrode Control: The system features an advanced electric servo motor assembly that controls the vertical movement of the electrode with sub-millimeter precision. By constantly monitoring arc voltage and current, the automated controller dynamically adjusts the electrode position to maintain a stable plasma arc, eliminating the inconsistencies associated with manual adjustment.
• State-of-the-Art PLC and Touchscreen Interface: The integration of a high-performance Programmable Logic Controller (PLC) combined with an intuitive touchscreen display simplifies system operation. Operators can configure complex processing parameters, monitor real-time system performance, view status graphics for all components, and export historical run data for quality assurance and academic publication.
• Dual-Layer Water-Cooled Safety Chamber: The vertical vacuum chamber is manufactured from high-grade stainless steel and features an integrated dual-layer water-cooling jacket. This design ensures rapid heat dissipation, keeping the outer furnace shell below 35°C during operation, which protects laboratory personnel and prevents thermal distortion of the chamber components.
• Customizable Vacuum Atmosphere Controls: Engineered with versatile vacuum ports, the system can be paired with various pump configurations to achieve different vacuum levels depending on the sensitivity of the materials being processed. It supports both high-vacuum operations to eliminate oxygen contamination and positive-pressure gas backfilling for processing under inert atmospheres like argon or nitrogen.
• Integrated Turnkey Design: The system is built onto a mobile cabinet frame that houses the power supplies, control systems, and cooling line distributors. This self-contained, integrated layout minimizes installation time, simplifies routine maintenance, and allows the entire unit to be easily relocated within the facility as laboratory layouts evolve.
• Robust Diagnostic and Safety Interlocks: To prevent equipment damage and ensure operator safety, the system is equipped with continuous monitoring sensors. The control system automatically detects low cooling water flow, vacuum pump faults, and emergency stop triggers, immediately shutting down power to the arc electrodes to mitigate risks.

Applications

Technical Specifications

Why Choose This Product

• Premium Quality Engineering: Our systems are built using only the finest certified raw materials, featuring heavy-duty stainless steel chambers and industrial-grade electrical components. This meticulous attention to design detail ensures our equipment stands up to years of demanding laboratory use without degradation.
• Unrivaled Process Consistency: By automating the critical electrode control and monitoring parameters through our proprietary PLC integration, we eliminate human error from the melting cycle. This guarantees that your research projects yield repeatable, publication-quality data time after time.
• Tailored Engineering Solutions: We understand that no two research laboratories have the same requirements. Our dedicated design team can customize vacuum configurations, chamber orientations, and power capacities, tailoring the system to fit your precise experimental goals rather than forcing you to adapt to standard off-the-shelf limits.
• Comprehensive Support and Certification: Every system undergoes comprehensive factory testing and calibration before shipment. We back our equipment with responsive technical support, a global supply chain for replacement components, and expert engineering assistance to ensure your operations run smoothly.

Please contact our technical sales representatives today to receive a detailed quote or to discuss custom system configurations tailored to your research objectives.
