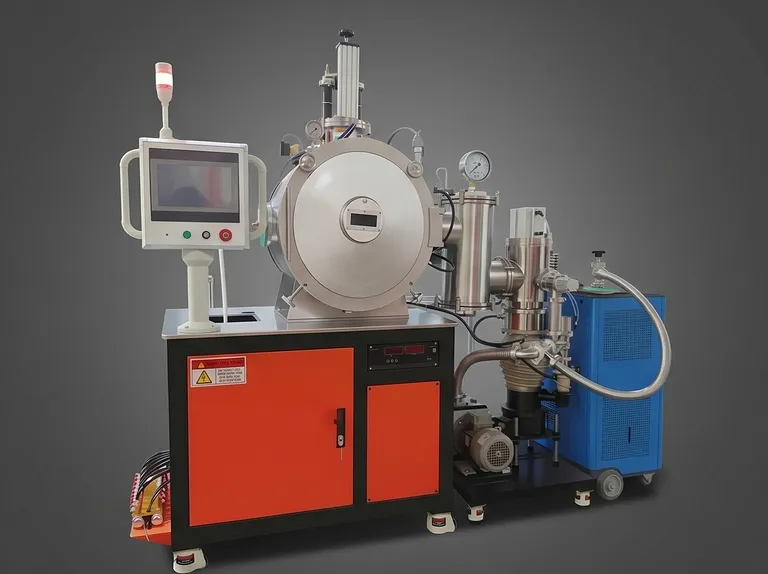

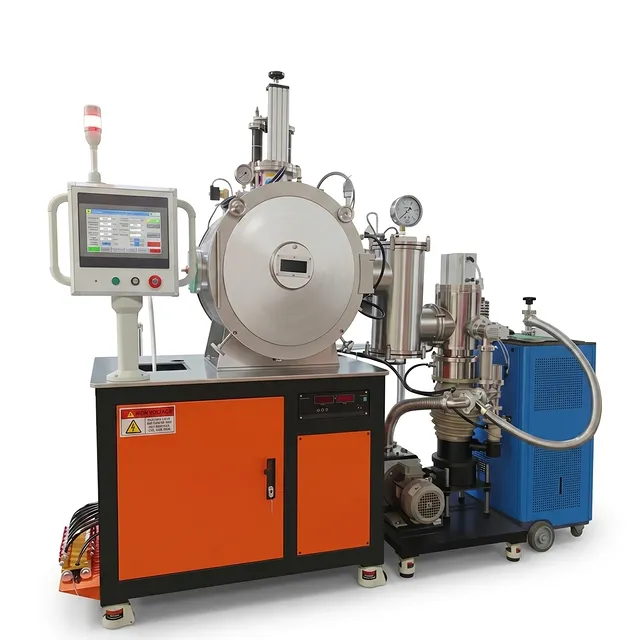

Small Scale Vacuum Distillation Purification Furnace High Temperature Induction Smelting System for Rare Precious Metals and Semiconductor Materials

Product Overview

This high-temperature vacuum distillation purification system represents a major advancement in thermal processing engineering, designed specifically to meet the rigorous demands of modern material science and high-purity metallurgy. By utilizing advanced induction heating technology, this system facilitates rapid thermal ramp-up and cool-down cycles, optimizing overall processing efficiency and chemical yields. The integration of a high-performance vacuum network and an independent, targeted condensation system allows for the seamless sublimation and re-condensation of volatile elements, delivering a dramatic step-up in raw material purity. B2B operators benefit from a reliable, highly controllable thermal environment engineered for the processing of sensitive, rare, and high-value metals.

Developed for versatility and precision, this equipment serves as a cornerstone in research laboratories, pilot-scale facilities, and specialized production lines. Its primary application focuses on the high-temperature vacuum sublimation, separation, and purification of low-boiling-point metals such as gold, silver, lead, indium, tin, zinc, and other rare earth elements. By reducing atmospheric pressure, the system lowers the boiling point of the target materials, preventing thermal degradation and enabling separation at highly efficient temperatures. It is widely adopted across the semiconductor, thin-film coatings, aerospace, and advanced energy storage sectors where material purity directly dictates end-product performance.

Built to withstand continuous, demanding industrial operations, this unit combines premium construction materials with robust structural engineering. The high-vacuum chamber, constructed from heavy-duty 304 stainless steel, is designed to eliminate outgassing and withstand extreme thermal stresses over prolonged cycles. With its highly integrated cooling loops, precise thermocouple monitoring, and automated control interface, operators can run complex thermal recipes with absolute repeatability and confidence. The robust system architecture minimizes maintenance downtime, ensuring that critical industrial R&D projects and specialized manufacturing campaigns proceed without interruption.

Key Features

• Advanced Induction Heating Technology: The heating assembly utilizes electromagnetic induction to directly couple with the crucible, enabling rapid heating rates, excellent thermal efficiency, and precise control over the hot zone, reducing processing time compared to traditional resistive heating elements.
• High-Performance Multi-Stage Vacuum System: Equipped with an industrial-grade vacuum pump set that achieves ultimate pressures down to 5.0 x 10^-3 Pa, creating an exceptionally clean, low-oxygen processing environment that prevents oxidation and contamination of highly reactive metals.
• Proprietary Condensation and Phase Separation Recovery: Features an independent, temperature-regulated condensation column that allows distinct metal vapors to deposit systematically based on their specific vapor pressures, ensuring high-yield recovery and exceptional purity levels in a single cycle.
• Flexible Multi-Atmosphere Capabilities: The system is engineered to operate under high vacuum, partial vacuum, or under positive pressure with inert protective gases such as argon or nitrogen, allowing operators to customize the atmosphere to suit the unique chemical properties of the charge material.
• Convenient Split-Chamber Design: The user-friendly open-type double-door structural design provides unrestricted access to the internal chamber, greatly simplifying the crucible loading, unloading, and cleaning processes while reducing turnaround times between production batches.
• Intelligent HMI Touchscreen Control Interface: An integrated industrial control platform allows for real-time monitoring of all process parameters, offering recipe storage, automated pressure and temperature ramp profiles, historical data logging, and secure remote control capabilities.
• Double-Walled Water-Cooled Chamber: Built from premium 304 stainless steel with a high-flow cooling jacket, maintaining a safe, cool external surface temperature even during prolonged high-temperature operations, protecting operator safety and system integrity.
• Customizable Capacity and Temp Configurations: Designed with a modular architecture that can be scaled from lab-scale 1 kg crucibles up to larger pilot production sizes, with custom temperature ratings extending up to 2400°C to meet diverse application requirements.

Applications

Technical Specifications

Why Choose This Product

• Premium B2B Engineering Quality: Engineered utilizing premium-grade 304 stainless steel and high-end vacuum valves, ensuring this system delivers long-term vacuum integrity and resists corrosion under aggressive chemical vapors.
• Outstanding Purity Optimization: The combination of fast-response induction heating and our specialized condensation recovery technology allows processing facilities to reach metal purity levels that meet strict semiconductor and aerospace standards.
• Tailored Integration and Scalability: We provide extensive customization options, allowing B2B buyers to select custom temperature profiles, chamber dimensions, vacuum pumping speeds, and automated gas delivery manifolds tailored to their specific workflows.
• Robust Data Traceability: Built with comprehensive HMI data logging and remote monitoring features, enabling research institutions and quality-assured manufacturers to easily export and document batch run data for strict compliance audits.
• Responsive Global Lifecycle Support: Backed by an industry-leading engineering team, we provide complete post-sales support, installation consulting, replacement parts sourcing, and long-term preventative maintenance plans.

For custom configurations, detailed processing consultation, or a formal commercial proposal, please contact our technical sales team today to discuss your thermal processing requirements.
