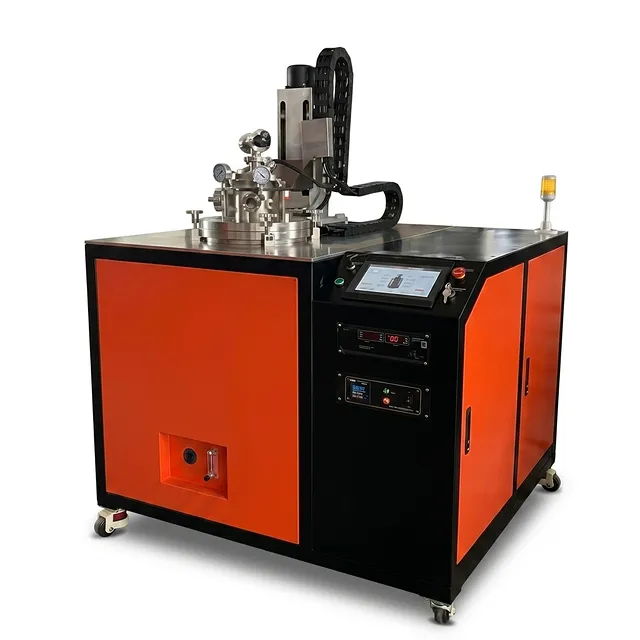

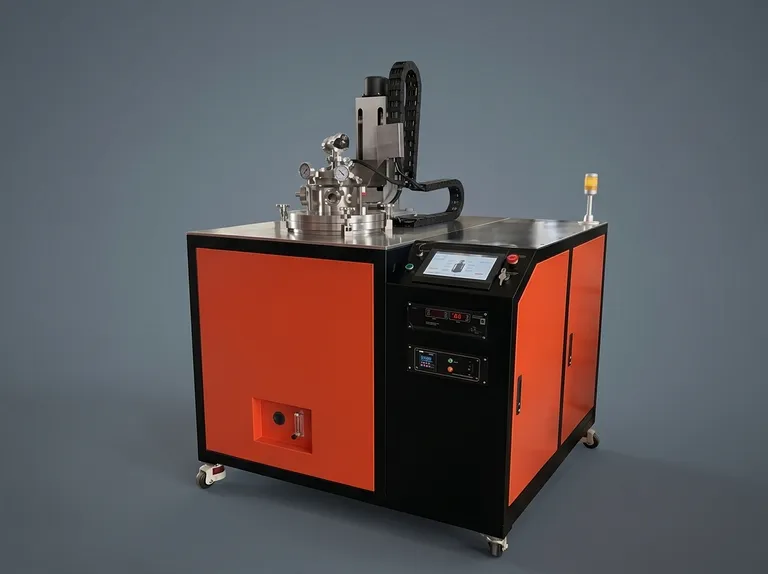

High Temperature Vacuum Distillation Furnace and Metal Purification System 2100C

Product Overview

This advanced thermal processing system represents the state of the art in high-temperature vacuum metallurgy, engineered specifically to perform precise separation and ultra-purification of volatile materials up to 2100°C. By leveraging vapor pressure differentials in a highly controlled, oxidation-free environment, the equipment facilitates the extraction of high-purity metals and composite materials with exceptional efficiency. This unit is designed to meet the rigorous demands of material science researchers and industrial manufacturers who require absolute purity in their output.

Commonly deployed in aerospace metallurgy, semiconductor substrate production, and rare-earth element processing, this system excels at separating complex metallic alloys and refining volatile metals. It is uniquely engineered to transition between high-vacuum operations and protective gas atmospheres, allowing for flexible processing of active, non-corrosive, or reactive materials. The advanced multi-zone thermal configuration guarantees high temperature uniformity across the crucible, ensuring consistent, repeatable yields for pilot-scale production and advanced R&D.

Built for long-term operational survival under extreme conditions, this system utilizes high-grade materials and structural components that mitigate thermal stress and prevent contamination. A heavy-duty, double-walled water-cooled chamber coupled with redundant safety interlocks ensures that the system delivers continuous operation with minimal downtime. Users can proceed with their high-temperature distillation runs with complete confidence in the thermal stability, vacuum integrity, and operational safety of this high-performance system.

Key Features

• Ultra-High Temperature Thermal Capability: The unit features a standard rated operating temperature of up to 2100°C, with custom-designed thermal profiles that can be tailored to operating ranges such as 500–1700°C, 800–2000°C, or 1000–2400°C to match specific material processing needs.
• Multi-Zone Resistance Heating Elements: Equipped with an advanced resistance heating system configured across two or three independent heating zones, allowing users to establish precise thermal gradients or maintain a highly uniform heat field depending on the distillation process requirements.
• Dual-Sensor Temperature Monitoring: An integrated sensing suite featuring both high-accuracy thermocouples and an optical infrared pyrometer provides continuous, redundant, and highly accurate temperature feedback across the entire heating range, eliminating control blind spots during transitions.
• High-Performance Vacuum Technology: Engineered to support ultimate vacuum levels ranging from a standard 5 Pa down to 5.0 × 10^-3 Pa, preventing oxidation and lowering the boiling points of target metals to enable lower-temperature, energy-efficient distillation.
• Ergonomic Top-Opening Chamber Design: Features a robust, smooth-acting top-opening hydraulic or pneumatic chamber lift mechanism that enables comfortable, unobstructed loading and unloading of heavy crucibles while maximizing operator safety.
• Double-Wall Water-Cooled 304 Stainless Steel Chamber: Built with a heavy-duty, dual-layer 304 stainless steel vessel featuring integrated water cooling to keep the external surface temperature safe to touch, preventing thermal deformation and prolonging the life of vacuum seals.

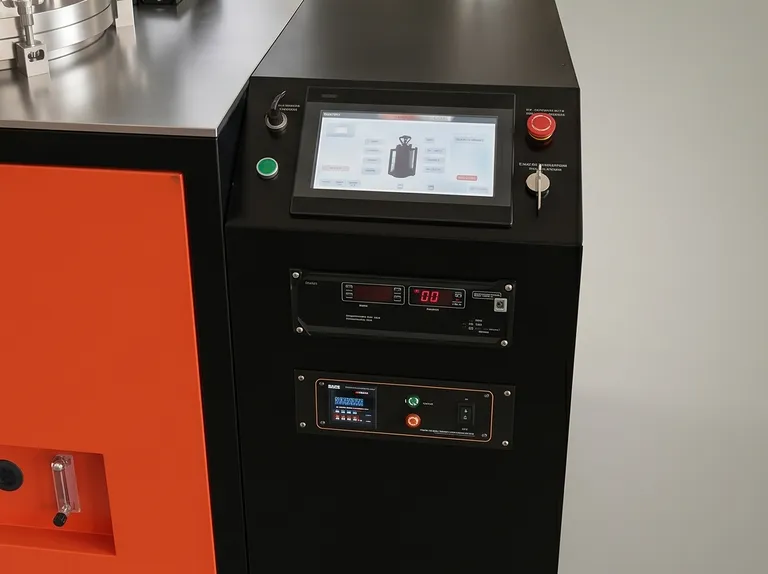

• Intelligent HMI and Control Interface: The system is operated via an industrial touchscreen HMI that includes real-time data visualization, programmable heating curves, multi-segment PID tuning, comprehensive data logging with USB export, and secure remote control capabilities.
• Atmospheric Versatility and Gas Control: Supports multiple processing conditions, including high vacuum, partial pressure vacuum, or protective inert atmospheres using gases like nitrogen or hydrogen, allowing for highly flexible chemical reduction and distillation processes.
• Integrated Safety and Interlock Systems: Features active monitoring of cooling water flow, chamber pressure, and element temperature with automatic shutdown routines to protect both operators and high-value materials in the event of utility failures.

Applications

The high-temperature vacuum distillation system is engineered to solve complex metallurgical separation challenges across multiple high-tech industries. Below are the primary applications where this unit delivers critical process advantages:

Technical Specifications

The industrial-grade TU-ZL10 system is engineered with the following technical parameters to support demanding thermal and metallurgical operations:

Configuration and Tailoring Options

The TU-ZL10 system is built on a modular, customizable platform. Depending on your material processing goals, several critical sub-systems can be scaled or modified:

• Vacuum Pumping Packages: For processes highly sensitive to oxygen or nitrogen contamination, high-vacuum packages including turbomolecular or oil diffusion pumps are available to reach levels down to 5.0 × 10^-3 Pa. Standard rotary vane and Roots blower packages are provided for rougher distillation needs.
• Thermal Field Customization: The resistance heating elements can be tailored using high-purity graphite, molybdenum, or tungsten depending on the chemistry of the volatilized vapors and the target operating temperature.
• Condenser & Collector Geometry: Specialized, temperature-controlled condenser plates and collectors can be integrated above the crucible zone to facilitate fractional condensation of different metal vapors in a single thermal run.

Why Choose This Product

• Premium Thermal Engineering: Designed with high-purity heating elements and advanced insulation materials that minimize thermal loss, resulting in superior energy efficiency and long heating-element lifespans even during continuous 2100°C runs.
• Robust Industrial Construction: The double-walled 304 stainless steel chamber is welded to rigorous vacuum standards and undergoes thorough helium mass spectrometer leak testing to ensure absolute vacuum integrity and operator safety.
• Advanced Process Automation: Equipped with a highly intuitive HMI system that automates complex thermal profiles and records critical process variables, making it easy to comply with aerospace, semiconductor, and medical quality standards.
• Tailored Customer Solutions: We offer extensive customization for crucible sizes, gas handling panels, vacuum configurations, and temperature ranges, ensuring that the furnace fits seamlessly into your existing pilot plant or laboratory workflow.
• Unmatched Lifetime Support: Every system is backed by our dedicated thermal application engineers, providing comprehensive installation assistance, operator training, rapid spare parts sourcing, and long-term remote diagnostics support.

If you are looking to elevate your metal refining, semiconductor synthesis, or material science research with an ultra-reliable, high-purity thermal processing solution, contact our technical sales team today to discuss your custom specifications or request a formal quotation.
