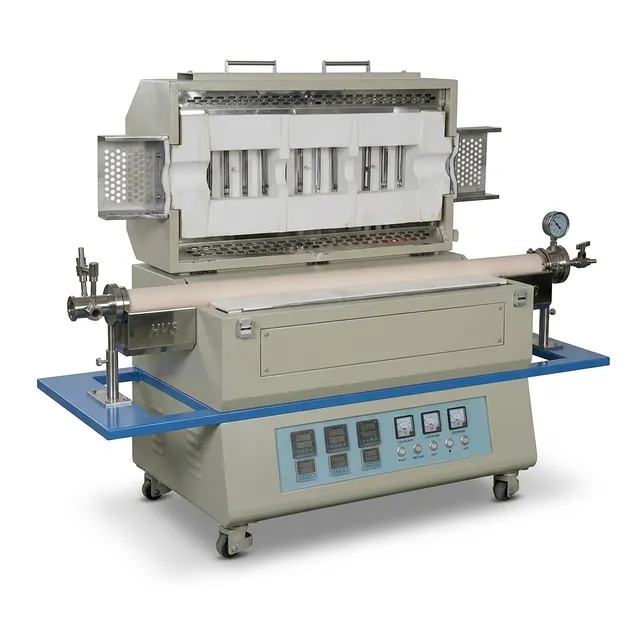

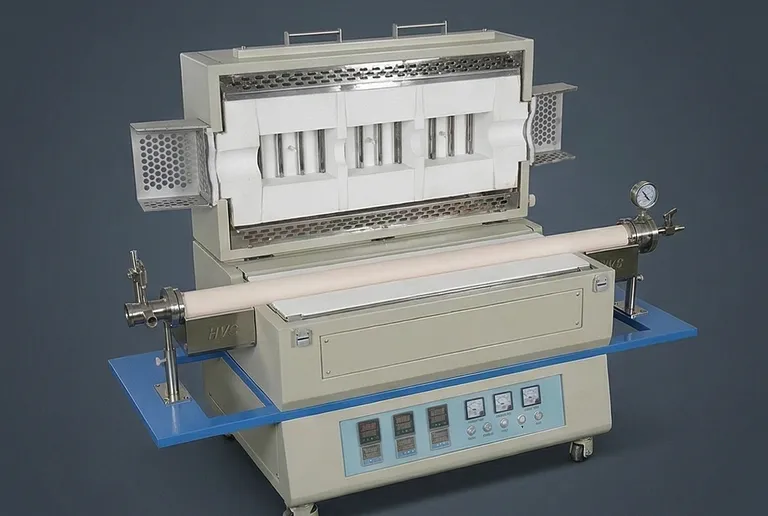

Three Temperature Zone Fast Heating Furnace 1500C Laboratory High Precision Thermal Processing System

Product Overview

This high-performance thermal processing system is engineered to meet the rigorous demands of material science research and industrial production. By utilizing a three-temperature zone configuration, the equipment provides researchers with the unique ability to create precise temperature gradients or maintain an exceptionally large isothermal uniform zone. This system is a primary choice for processes requiring rapid heating cycles and multi-stage atmospheric control, ensuring that complex thermal profiles are executed with absolute fidelity. The core value proposition lies in its ability to combine speed with metallurgical precision, allowing for accelerated testing without compromising the integrity of the specimen.

Primary use cases for the unit include chemical vapor deposition (CVD), sintering of advanced ceramics, and the annealing of semiconductor wafers. It serves diverse sectors, from aerospace and defense to renewable energy research. In these high-stakes industries, the ability to control thermal environments at the molecular level is critical. The design prioritizes energy efficiency alongside performance, utilizing a multi-layered insulation strategy that minimizes heat loss and maintains a cool outer shell, which is essential for busy laboratory environments where safety and workspace comfort are paramount.

Confidence in this equipment is backed by its robust engineering. Every component, from the high-capacity heating elements to the advanced vacuum-molded chamber, is selected for its ability to withstand continuous operation at elevated temperatures. The integration of high-grade monitoring systems ensures that operational parameters remain within specified tolerances, even during fluctuating power conditions. This reliability translates to reduced downtime and consistent results, positioning the equipment as a cornerstone for any lab focused on pioneering heat treatment and material development.

Key Features

• Heavy-Duty Silicon Carbon Heating Elements: The system utilizes silicon carbon rods with a hot end diameter (d) of 14mm, significantly surpassing the industry standard of 12mm. This increased thickness lowers the surface load of the rod, which directly contributes to a substantially longer service life and better resistance to oxidation.
• Extended Cold-End Engineering: To protect electrical connections and ensure safe operation, the cold end of the heating elements is extended to 210mm. This design choice, compared to the conventional 180mm standard, ensures that the external terminals remain at a lower temperature, preventing thermal damage to the wiring and increasing overall system reliability.
• Optimized Oxidation Resistance: The surface of the silicon carbide rods is processed to be exceptionally compact, forming a protective layer that limits internal oxidation. This metallurgical advantage ensures constant resistance values over time, preventing the "aging" effect that often causes temperature fluctuations in inferior furnaces.
• Advanced Polycrystalline Chamber: The furnace chamber is constructed using high-purity alumina polycrystalline fiber. Manufactured via vacuum suction and filter molding, this material offers superior thermal shock resistance and much lower heat storage than traditional refractory bricks, enabling fast heating and cooling rates.
• Japanese Engineering Arrangement: Following advanced Japanese thermal technology, the spacing and pitch of the heating elements are precisely calculated and simulated using specialized thermal software. This ensures an optimized temperature field that avoids hot spots and provides uniform radiant heat flow to the workload.
• Four-Sided Radiative Heating: Unlike standard units that heat from only two sides, this system employs four-way heating. This configuration provides a balanced heat flux from all directions, which is essential for preventing structural warping or non-uniform grain growth in sensitive ceramic or metallic samples.
• Integrated Safety Infrastructure: The unit includes a pre-installed air switch and a sophisticated leakage protector. In the event of an overcurrent condition or electrical leakage, the system automatically disconnects, protecting both the operator and the internal electrical components from damage.
• Real-Time Computer Integration: A dedicated communication interface and proprietary software allow for total control over the furnace via a PC. Operators can monitor the PV (Process Value) and SV (Set Value) in real-time, view live temperature curves, and archive historical data for quality assurance and regulatory compliance.
• UL-Certified Electrical Components (Optional): For laboratories requiring the highest standards of safety compliance, the system can be configured with a UL-certified electrical board featuring fully imported components that meet international safety and performance benchmarks.

Applications

Technical Specifications

Why Choose This High-Performance System

Choosing this thermal processing system means investing in precision engineering that prioritizes long-term operational consistency. While standard furnaces often suffer from uneven wear and temperature drift, our unit utilizes 14mm silicon carbon rods and specialized 210mm cold ends to ensure that the core heating components last longer and perform more reliably. The Japanese-inspired chamber design and thermal field simulation provide a level of uniformity that is essential for high-end material research, where even a few degrees of variance can invalidate an experiment.

Furthermore, the integration of advanced data logging and computer control transforms the furnace from a simple heating tool into a comprehensive laboratory asset. The ability to export real-time temperature data ensures that your research is fully documented and reproducible. Coupled with high-grade safety features like integrated leakage protection and optional UL-certified electronics, this system offers peace of mind for facility managers and researchers alike.

Our commitment to manufacturing excellence is evident in every weld and component selection. We provide more than just equipment; we provide a robust platform for discovery that withstands the rigors of industrial use. For a detailed quote or to discuss custom configurations for your specific material processing needs, please contact our technical sales team today.
