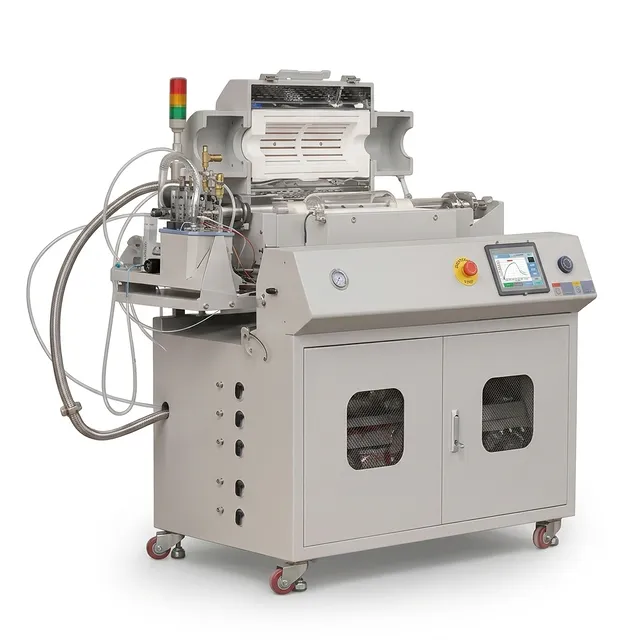

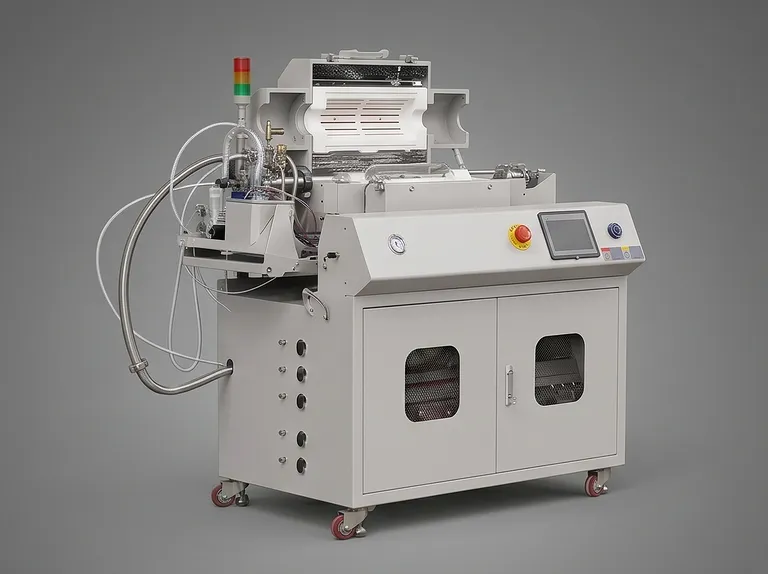

Versatile Chemical Vapor Deposition Tube Furnace System for Advanced Material Research and Industrial Coating Processes

Product Overview

This high-performance chemical vapor deposition (CVD) system serves as a cornerstone for advanced material synthesis, providing a controlled thermal environment combined with precision gas delivery. The equipment is engineered to facilitate complex gas-phase chemical reactions on heated substrates, enabling the growth of high-purity thin films, nanostructures, and specialized coatings. By integrating a multi-zone heating architecture with a sophisticated mass flow gas control station, the system allows researchers and industrial engineers to manage every variable of the deposition process with extreme accuracy. Whether utilized for the development of semiconductor layers or the synthesis of two-dimensional materials, the unit delivers the stability required for repeatable scientific breakthroughs.

Primarily utilized in semiconductor manufacturing, energy storage research, and advanced metallurgy, this versatile furnace system supports a wide range of processes including LPCVD, PECVD, and CVI. It is designed to handle demanding industrial R&D requirements, from the preparation of carbon nanotubes and graphene to the deposition of metallic and ceramic films. The system's ability to maintain high vacuum levels while precisely mixing multiple precursor gases makes it indispensable for applications where film purity and thickness consistency are paramount. Target industries include aerospace, electronics manufacturing, and academic material science departments focusing on next-generation nanotechnology.

Confidence in this equipment stems from its robust engineering and high-grade component selection. Built to withstand continuous operation at elevated temperatures, the unit features a high-purity alumina chamber and advanced heating elements that ensure long-term thermal stability. Every component, from the stainless steel gas lines to the digital PID control interface, is selected for durability and precision. This commitment to engineering excellence ensures that the system performs reliably under demanding vacuum or atmosphere-protected conditions, providing users with the peace of mind that their sensitive thermal processes will proceed without interruption or deviation from set parameters.

Key Features

• Multi-Zone Temperature Architecture: This system features a three-zone heating configuration that allows for the creation of precise temperature gradients or an exceptionally long uniform heating field, which is essential for uniform film distribution across larger substrates.
• High-Temperature Performance: Capable of reaching sustained operating temperatures up to 1600°C, the furnace accommodates a broad spectrum of thermal processes, including high-temperature sintering, atmosphere reduction, and complex vapor deposition cycles.
• Precision Mass Flow Control: The integrated gas management station utilizes high-accuracy mass flow controllers (MFC) to mix and input up to four distinct gas channels, ensuring the exact stoichiometry required for high-purity material synthesis.
• Ultimate Vacuum Capability: Equipped with an optional high-vacuum molecular pump station, the unit achieves vacuum levels as low as 6x10⁻⁵ Pa, effectively removing contaminants to ensure the integrity of oxygen-sensitive deposition processes.
• Advanced PID Control Interface: A sophisticated digital controller maintains temperature accuracy within ±1°C, offering programmable ramps and dwells to automate complex thermal profiles with minimal user intervention.
• Robust Alumina Polycrystalline Fiber Chamber: The reaction zone is insulated with high-purity alumina fiber, which offers superior thermal insulation, rapid heating rates, and excellent resistance to thermal shock, extending the operational lifespan of the equipment.
• Versatile Atmospheric Protection: Designed to operate under a variety of conditions, the furnace supports high-vacuum, inert gas environments, or controlled positive pressure atmospheres, providing the flexibility needed for diverse chemical vapor infiltration studies.
• Safety-First Engineering: The system is outfitted with pressure sensors, emission monitoring, and interlock systems to protect operators when working with flammable, toxic, or air-reactive gases, ensuring a secure laboratory environment.
• Modular Design for Customization: The equipment can be configured in various orientations, including vertical for fluidized bed applications or split-hinge designs for rapid cooling and easy sample loading, catering to specific research workflows.
• High-Purity Reaction Environment: Using high-purity quartz or alumina tubes, the system prevents cross-contamination and ensures that the chemical reaction remains localized to the precursors and the substrate for consistent material quality.

Applications

Technical Specifications

Why Choose This Product

• Unmatched Thermal Precision: The multi-zone heating architecture of this system provides the flexibility to create custom thermal gradients, ensuring that complex chemical reactions are localized exactly where they are needed for superior thin film quality.
• Industrial-Grade Reliability: Engineered for 24/7 R&D and pilot production, the system uses high-end Silicon Carbide heating elements and alumina polycrystalline fiber insulation to minimize downtime and maximize the lifespan of the unit.
• Highly Customizable Platform: We recognize that every research project is unique; therefore, this equipment can be tailored with specific gas channels, high-vacuum stations, or vertical configurations to meet your exact experimental parameters.
• Proven Performance in High-Vacuum Applications: With the ability to reach an ultimate vacuum of 10⁻⁷ torr in specific configurations, this system is ideal for the most sensitive synthesis tasks where oxygen and moisture contamination must be eliminated.
• Comprehensive Safety Systems: From positive pressure sensors to emission monitoring, this system integrates multiple layers of protection, allowing researchers to work safely with hazardous precursor gases.

Invest in a thermal processing system that grows with your research; contact our technical team today for a customized quote or to discuss your specific process requirements.
