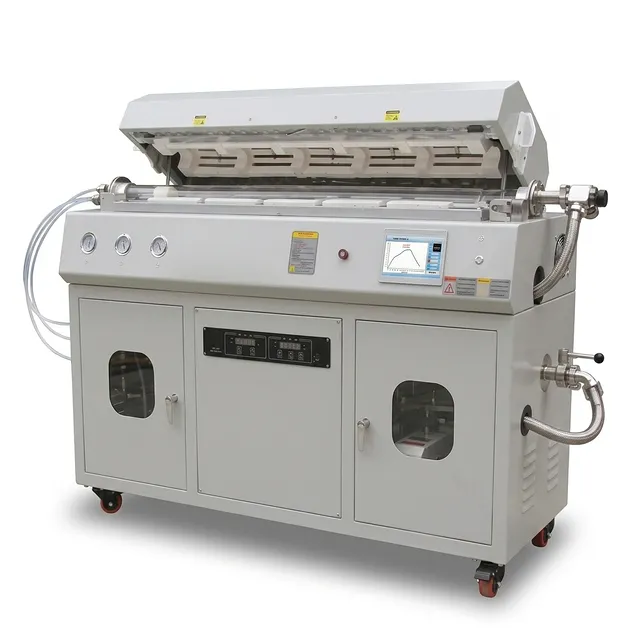

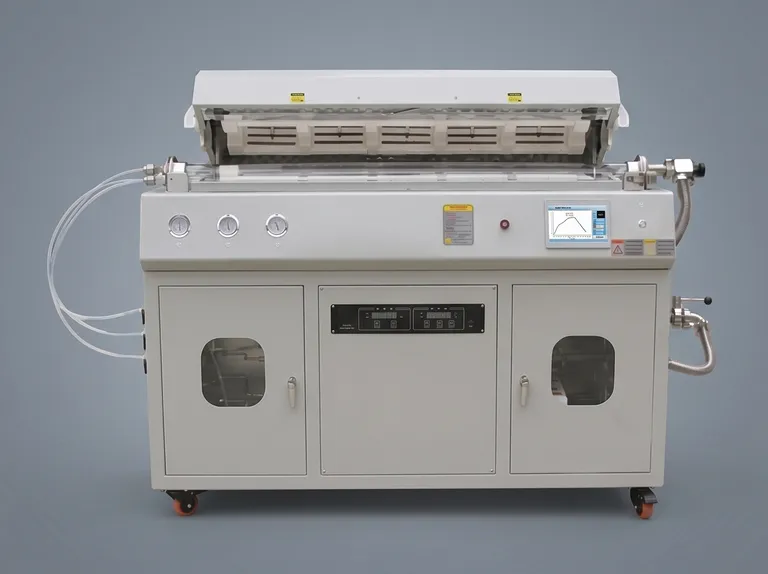

Multi Heating Zones CVD Tube Furnace System for Precision Chemical Vapor Deposition and Advanced Material Synthesis

Product Overview

This multi heating zone chemical vapor deposition system represents a pinnacle of thermal engineering for modern material science and industrial research and development. Designed to facilitate complex vapor phase reactions, this equipment provides an environment where gaseous precursors are precisely controlled to deposit high-quality thin films onto various substrates. The core value proposition of this unit lies in its ability to decouple the thermal profiles of different process stages, such as precursor sublimation and substrate deposition, ensuring that the kinetic requirements of each chemical reaction are met with absolute precision. By utilizing multiple independent heating zones, the system creates an optimized temperature field that is essential for producing uniform coatings and high-purity crystalline structures.

Targeting industries ranging from semiconductor manufacturing to renewable energy, this system is an indispensable tool for the development of electronic devices, solar cells, and advanced nanomaterials. It excels in applications requiring consistent atmospheric control and high-vacuum environments, such as the growth of 2D materials like graphene or the synthesis of perovskite thin films. The equipment is engineered to handle the rigorous demands of industrial laboratory settings, providing a stable platform for both fundamental research and pilot-scale production. Its robust construction and sophisticated control architecture allow researchers to explore new material properties with a high degree of reproducibility and confidence.

Reliability and performance under demanding conditions are the hallmarks of this thermal processing unit. Built with premium materials, including high-purity alumina fiber insulation and silicon carbide heating elements, the system maintains superior thermal efficiency while minimizing external heat loss. The integration of advanced safety features and precise monitoring tools ensures that the equipment remains operational through long-duration cycles, even when working with sensitive or reactive gases. This commitment to engineering excellence guarantees that the unit delivers consistent, repeatable results, making it a reliable investment for organizations focused on pushing the boundaries of material technology and industrial chemical processes.

Key Features

• Independently Controlled Heating Zones: The system features multiple heating modules that can be programmed separately, allowing for the creation of customized temperature gradients or exceptionally long constant temperature fields to suit specific vapor deposition requirements.
• Advanced PID Programmable Control: Utilizing a high-precision digital controller, the unit offers accurate temperature regulation with ±1°C stability, supporting complex multi-step thermal profiles and remote monitoring for centralized laboratory management.
• Precision Mass Flow Control (MFC): Equipped with a multi-channel gas station, the equipment ensures ultra-stable delivery of precursor and carrier gases, with high-accuracy flow meters providing the consistency needed for stoichiometric film growth.
• High-Vacuum Capability: The inclusion of a stainless steel vacuum flange assembly with versatile adapting ports allows the system to achieve and maintain high vacuum degrees, effectively removing impurities and facilitating low-pressure deposition environments.
• Energy-Efficient Chamber Construction: The furnace utilizes a double-layer structure combined with high-purity alumina polycrystalline fiber insulation, which significantly reduces power consumption and keeps the exterior shell cool for operator safety.
• User-Friendly Interface: A 7-inch TFT touch screen controller provides an intuitive platform for setting complex process programs, viewing real-time data trends, and analyzing historical batch information for better process optimization.
• Durable Heating Elements: Depending on the temperature configuration, the unit employs high-grade Silicon Carbide or other advanced heating elements designed for long-term durability and rapid thermal response in oxidizing or inert atmospheres.
• Versatile Tube Materials: To accommodate various chemical compatibility requirements, the system can be configured with high-purity quartz, alumina ceramic, or heat-resistant steel furnace tubes, ensuring the integrity of the process chamber.
• Integrated Safety Systems: Built-in safeguards, including over-temperature protection, sensor failure alarms, and optional gas leak detection, provide a secure environment for processing hazardous or reactive materials.
• Modular Design for Customization: The system's architecture allows for deep customization, including the addition of specialized gas channels, high-vacuum molecular pump stations, and integrated computer communication ports.

Applications

Technical Specifications

Why Choose This Product

Choosing this chemical vapor deposition system means investing in a platform engineered for precision, versatility, and long-term durability. The multi-zone heating architecture provides the spatial temperature control necessary for advanced vapor phase synthesis, allowing researchers to isolate precursor sublimation from final deposition with unparalleled accuracy. Our systems are manufactured to the highest industrial standards, utilizing premium alumina fiber and high-grade heating elements that ensure both energy efficiency and consistent thermal performance across thousands of operational hours.

Beyond technical specifications, we offer a level of customization that allows this equipment to integrate seamlessly into your specific R&D workflow. Whether your process requires high-vacuum molecular pump stations, specialized gas monitoring for flammable precursors, or unique tube materials for corrosive environments, our engineering team can tailor the hardware and software to meet your exclusive requirements. We prioritize operator safety and system reliability, providing comprehensive support and high-performance sealing technology that maintains the integrity of your research environment. This system is not merely a tool, but a complete solution designed to accelerate innovation in material science.

Contact our technical sales team today for a detailed quote or to discuss a custom configuration tailored to your specific research objectives.
